Ethernet Interface Magnetic Core Transformer 100Base - T 23Z91SMNL Single Phase

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero

I'm Online Chat Now

Ethernet Interface Magnetic Core Transformer 100Base - T 23Z91SMNL Single Phase

China Ethernet Interface Magnetic Core Transformer 100Base - T 23Z91SMNL Single Phase supplier

Large Image :  Ethernet Interface Magnetic Core Transformer 100Base - T 23Z91SMNL Single Phase

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS
Model Number: 23Z91SMNL

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 1000K.PCS/Month
Contact Now
Detailed Product Description
Product Name: 23Z91SMNL Ethernet Magnetic Transformers For Ethernet Interface Use For: Ethernet Interface
Coil Number: Autotransformer Phase: Single
Type: Ethernet Magnetic Transformers Speed: 100Base-T
Sample: Free Samples

23Z91SMNL Ethernet Magnetic Transformers For Ethernet Interface


PRODUCT DETAILS:

  • ROHS COMPLIANT.
  • HEADER : PHENOLIC WITH FLAMMABILITY RATING UL 94V-O OR BETTER.
  • SOLDERABILITY: CONFORMS TO ANSI/J-STD-002

          245℃ REFLOW PEAK TEMPERATURE PER IPC/EIA J-STD-003A

  • OPERATING TEMPERATURE:0℃  TO  70℃
  • STORAGE TEMPERATURE :-20 ℃ TO +125 ℃
  • JEDEC MOISTURE:LEVEL  1.
  • DIMENSIONS ARE IN INCHES WITH THE FOLLOWING TOLERANCES:

             .XX  =  ±.0.1        .XXX = ±.005







ELECTRICAL CHARACTERISTICS AT +25℃ UNLESS OTHER SPECIFIED

PARAMETER SPECIFICATIONS
OPERATING  TEMPERATURE 0℃  TO  +70℃
TURNS RATIO 1 : 1 ±2%
POLARITY PER SCHEMATIC
CAPACITANCE WINDING TO WINDING 10 pF MAX ( AT 100 KHz 20 mVRMS)
DC RESISTANCE 0.3 OHMS MAX
LEAKAGE INDUCTANCE 0.2 uH MAX
PRIMARY INDUCTANCE 100uH ±20% ( AT 100 KHz 20 mVRMS )
INPUT -OUTPUT ISOLATION 1500 VRMS MIN @  60 SECONDS






23Z91SMNL Ethernet Magnetic Transformers For Ethernet Interface
Ethernet Interface Magnetic Core Transformer 100Base - T 23Z91SMNL Single Phase

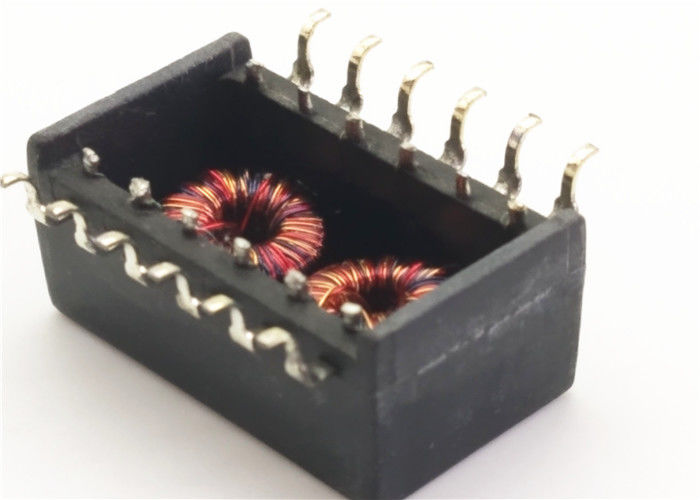

PRODUCT PICTURE
