Multiple Ports Metal Shielded RJ45 Connectors J0N-0012NL THT Mount

Multiple Ports Metal Shielded RJ45 Connectors J0N-0012NL THT Mount
Multiple Ports Metal Shielded RJ45 Connectors J0N-0012NL THT Mount

Large Image :  Multiple Ports Metal Shielded RJ45 Connectors J0N-0012NL THT Mount

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: J0N-0012NL

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 20pcs/tray ,680pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 1000K.PCS/Month
Detailed Product Description
Product Name: J0N-0012NL Multiple Ports PoE RJ45 Connector With RoHS Certification POE: With POE
Type: RJ45 Jack Material: Copper Ally, Thermoplastic, Gold..
Shield: Shielded Mounting Type: THT
Port: 1*4 Ports
High Light:

rj45 multiple port connectors

,

power over ethernet rj45 connector

J0N-0012NL Multiple Ports PoE RJ45 Connector With RoHS Certification


J0N-0012NL details:
1. RoHS COMPLIANT
2. PLASTIC HOUSING : THERMOPLASTIC MATERIAL WITH FLAMMABILITY RATING UL 94V-0 OR
    BETTER
3. CONTACTS PLATING: 50 MICROINCHES GOLD PLATING
4. CONTACT BASE MATERIAL: PHOSPHOR BRONZE
5. UNDER PLAATING : 30 - 50u INCHES NICKEL
6. SOLDER TAIL PLATING: 200 - 500 UINCHES 100% TIN, MATTE FINISH
7. METAL SHIELD: NICKEL PLATING ON COPPER ALLOY
8. JACK CAVITY CONFORMS TO FCC PART 68 SUBPART F.
9. PCB PLATING: HASL
10. STORAGE TEMPERATURE: - 20℃ TO +125℃
11. COMPLIANCE TO J - STD:
      A. J - STD -002: SOLDERABILITY AT 245℃ DIP AND LOOK TEST
      B. J - STD -020: LEVEL 1, NO MOISTURE SENSITIVE
      C. J - STD -075: W2, 270℃ MAXIMUM THROUGH WAVE SOLDER


ELECTRICAL CHARACTERISTICS AT 25℃ UNLESS OTHERWISE SPECIFIED
    MEETS IEEE 802.3 SPECIFICATION
PARAMETER SPECIFICATION
OPERATING TEMPERTURE 0℃ - 70℃
TURNS RATIO 1 .00 ± 2%
POLARITY PER SCHEMATIC
INSERTION LOSS 100 KHz
-1.2 dB MAX

RETURN LOSS

(Z OUT = 100 OHM ± 5%)

. 1-40 MHz
- 16 dB MIN

INDUCTANCE (OCL)

(MEDIA SIDE, 0℃ TO +70℃)

350 uH MIN(MEASURED AT 100 KHz, 100 mVRMS

AND WITH 8 mA DC BIAS)

CROSSTALK,

ADJACENT CHANNELS

1 MHz
- 50 dB MIN

COMMON MODE

REJECTION RATIO

2 MHz
- 50 dB MIN

DC RESISTANCE

1/2WINDING

.65 OHMS MAX

DC RESISTANCE

IMBALANCE

±.065 OHMS MAX ( CENTER TAP SYMMETRY )
DC CURRENT RATING 350 mA MAX

INPUT - OUTPUT

ISOLATION

2250 VDC FOR 60 SECONDS





J0N-0012NL Multiple Ports PoE RJ45 Connector With RoHS Certification


Multiple Ports Metal Shielded RJ45 Connectors J0N-0012NL THT Mount 0

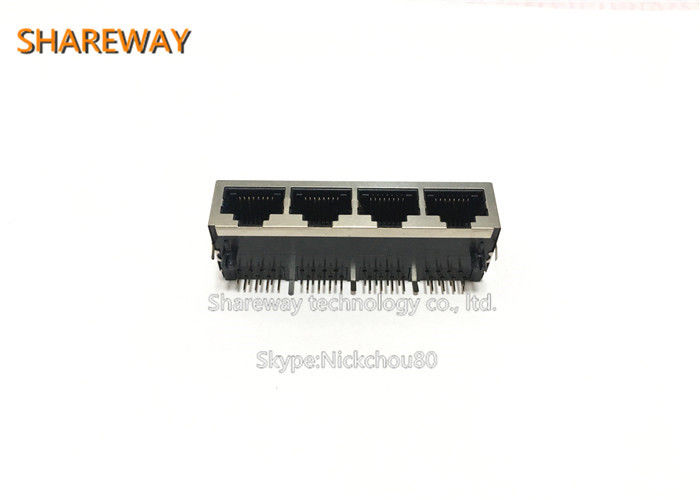

PRODUCT PICTURE


Multiple Ports Metal Shielded RJ45 Connectors J0N-0012NL THT Mount 1





J0N-0012NL Multiple Ports PoE RJ45 Connector With RoHS Certification


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs

Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
