10 / 100Mb AMDIX RJ45 Magnetic Ethernet Jack JKM-0011NL For ADSL Modems

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris

I'm Online Chat Now

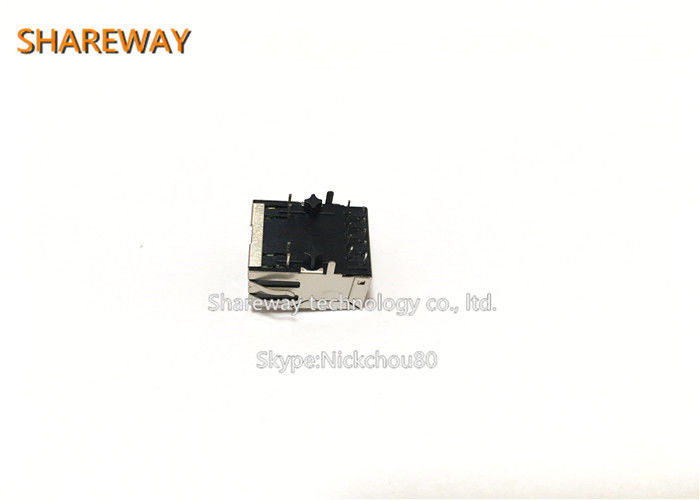

10 / 100Mb AMDIX RJ45 Magnetic Ethernet Jack JKM-0011NL For ADSL Modems

10 / 100Mb AMDIX RJ45 Magnetic Ethernet Jack JKM-0011NL For ADSL Modems
10 / 100Mb AMDIX RJ45 Magnetic Ethernet Jack JKM-0011NL For ADSL Modems

Large Image :  10 / 100Mb AMDIX RJ45 Magnetic Ethernet Jack JKM-0011NL For ADSL Modems

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: JKM-0011NL

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray in Carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 1000K.PCS/Month
Detailed Product Description
Product Name: JKM-0011NL 10/100Mb AMDIX Magnetic RJ45 Jack For ADSL Modems Mount Style: THT / Side Entry
Mounting: PCB PCB: CNRJ45-1X1WLED
Indicator: Resistor LED Samples: Available
High Light:

10 pin rj45 jack

,

ethernet rj45 jack

JKM-0011NL 10/100Mb AMDIX Magnetic RJ45 Jack For ADSL Modems


Product Description:
1x1 Tab-DOWN RJ45
10/100 Base-TX RJ45 1x1 Tab-DOWN 8-pin Integrated Magnetics Connector, designed to support high volume cost-conscious consumer applications such as: ADSL modems, Cable modems, STB and Video on Demand.

Features and Benefits:
RoHS peak wave solder temperature rating 260°C
Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP

Electrical Performance Summary:
Meets IEEE 802.3 specification
350μH minimum OCL with 8mA bias current
High performance for Max EMI suppression


Similar product:

Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C

RoHS

Compliant

Part Number

Data
Rate
LEDs 1
L/R
Insertion
Loss TX/RX
(dB )
Return Loss
(dB TYP)
100Ω (± 15 Ω)
Crosstalk
(dB TYP)
Common Mode
Rejection
(dB TYP)
Hipot
(Vrms MIN)
1-65
MHz
1-10
MHz
10-30
MHz
30-60
MHz
60-80
MHz
1-30
MHz
30-60
MHz
60-100
MHz
1-50
MHz
50-150
MHz
@ 60Hz
1 MIN
JKM-0008NL100BTG/Y-1.0-18-14-12-10-35-35-30-20-151500
JKM-0009NL100BTG/Y-1.0-18-14-12-10-35-35-30-20-151500
JKM-0010NL100BTNone-1.0-18-14-12-10-35-35-30-20-151500
JKM-0011NL100BTNone-1.0-18-14-12-10-35-35-30-20-151500




RJ45 Durability Testing Rating
Part Number

Mating Force

(MAX)

Unmating Force

(MAX)

Durability

Plug to Jack

Retention (MIN)

JKM Series5 lbs./2.268 kgs.5 lbs./2.268 kgs.750 Insertions20 lbs./9.072 kgs.




RJ45 Material Specification

Part

Number

ShieldContactHousing
MaterialFinishMaterialPlating AreaSolder AreaMaterialSpecification

MSL

Rating

JKM

Series

Brass20-40m inches Nickel over
10-20m inches Brass

Phosphor

Bronze

Nickel underplating and selective gold plating 15μ inchesTin matte finishThermoplasticUL 94 V-01


JKM-0008NL Magnetic RJ45 Jack Gigabit Circuit W/Led's Shielded


10 / 100Mb AMDIX RJ45 Magnetic Ethernet Jack JKM-0011NL For ADSL Modems 0
10 / 100Mb AMDIX RJ45 Magnetic Ethernet Jack JKM-0011NL For ADSL Modems 1
JKM-0008NL Magnetic RJ45 Jack Gigabit Circuit W/Led's Shielded


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs

Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer

Contact Details
SHAREWAY TECHNOLOGY CO., LTD.

Contact Person: Nick

Send your inquiry directly to us (0 / 3000)
