BSCH Series SMD Power Inductor Thin Volume For High Frequency Applications

China BSCH Series SMD Power Inductor Thin Volume For High Frequency Applications supplier

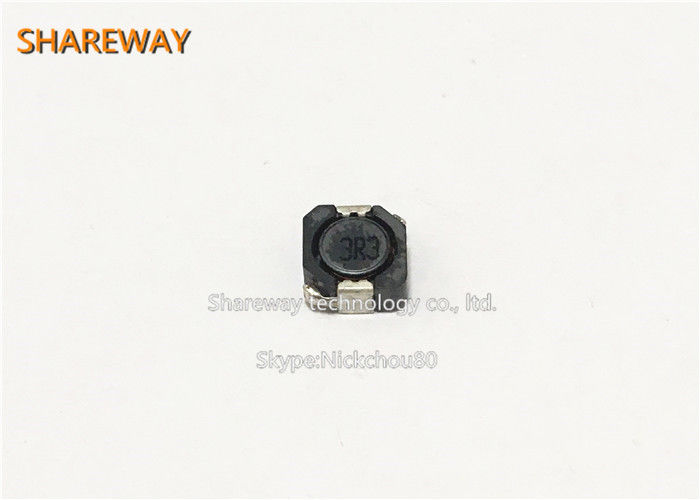

Large Image :  BSCH Series SMD Power Inductor Thin Volume For High Frequency Applications

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: BSCH Series

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel ,Tube
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Contact Now
Detailed Product Description
Product Name: BSCH Series SMD Power Inductor For High Frequency Applications. Color: Gray
Volume: Thin Size: 0.6mm*1.0mm*1.6mm
Type: Power Inductor Sample: Free Samples Available

BSCH Series SMD Power Inductor for high frequency applications.


Product Description:

The BSCH Series is a type of ceramic chip inductor produced using
the multilayer technology. The series provides excellent Q factor and
SRF characteristics and is suitable for high frequency applications.



Features:

  • RoHS compliant
  • Excellent Q factor and SRF characteristics
  • Small size of 1005/1608 is suitable for small portable devices
  • Supports operating frequency up to 6GHz with nominal inductance values from 1.0nH to 470nH.

Applications:

  • RF resonance and impedance matching circuit
  • RF and wireless communication
  • Information technology equipment, computers, telecommunications, radar detectors, automotive electronics,cellular phones, pagers, PDAs, keyless remote systems
  • L-C filter configurations



BSCH Series SMD Power Inductor for high frequency applications.


BSCH00060303 SMD Power Inductor  Ceramic Multilayer Chip Inductors

BSCH Series SMD Power Inductor Thin Volume For High Frequency Applications





BSCH Series SMD Power Inductor for high frequency applications.


BSCH Series Product:

Electrical Characteristics
Part Number Inductance
(nH)
Tolerance
(±%)
Test
Frequency
(MHz)
Q
Min
SRF
(MHz) Min
RDC
(Ω) Max
Rated Current
(mA) Max
BSCH000603031N0□00 1.0 ±0.3nH 100 4 >10000 0.11 470
BSCH000603031N2□00 1.2 ±0.3nH 100 4 >10000 0.12 450
BSCH000603031N5□00 1.5 ±0.3nH 100 4 >10000 0.13 430
BSCH000603031N8□00 1.8 ±0.3nH 100 4 >10000 0.16 390
BSCH000603032N0□00 2.0 ±0.3nH 100 4 >10000 0.17 380
BSCH000603032N2□00 2.2 ±0.3nH 100 4 8800 0.19 360
BSCH000603032N4□00 2.4 ±0.3nH 100 4 8300 0.20 350
BSCH000603032N7□00 2.7 ±0.3nH 100 4 7700 0.21 340
BSCH000603033N0□00 3.0 ±0.3nH 100 4 7200 0.22 330
BSCH000603033N0□00 3.3 ±0.3nH 100 4 6700 0.23 320
BSCH000603033N6□00 3.6 ±0.3nH 100 4 6400 0.25 310
BSCH000603033N9□00 3.9 ±0.3nH 100 4 6000 0.27 300
BSCH000603034N3□00 4.3 ±0.3nH 100 4 5700 0.30 280
BSCH000603034N7□00 4.7 ±0.3nH 100 4 5300 0.30 280
BSCH000603035N1□00 5.1 ±0.3nH 100 4 5000 0.33 270
BSCH000603035N6□00 5.6 ±0.3nH 100 4 4600 0.36 260
BSCH000603036N2□00 6.2 ±0.3nH 100 4 4200 0.38 250
BSCH000603036N8□00 6.8 5 100 4 3900 0.39 250
BSCH000603037N5□00 7.5 5 100 4 3600 0.41 240
BSCH000603038N2□00 8.2 5 100 4 3400 0.45 230
BSCH000603039N1□00 9.1 5 100 4 3200 0.48 220
BSCH0006030310N□00 10 5 100 4 2900 0.51 220
BSCH0006030312N□00 12 5 100 4 2700 0.68 190
BSCH0006030315N□00 15 5 100 4 2100 0.71 180
BSCH0006030318N□00 18 5 100 4 1800 0.81 170
BSCH0006030322N□00 22 5 100 4 1800 1.00 150
BSCH0006030327N□00 27 5 100 4 1700 1.35 120
BSCH0006030333N□00 33 5 100 4 1500 1.47 110
BSCH0006030339N□00 39 5 100 4 1300 1.72 100
BSCH0006030347N□00 47 5 100 4 1100 1.90 100
BSCH0006030356N□00 56 5 100 4 1100 2.27 80
BSCH0006030368N□00 68 5 100 4 1000 2.66 80
BSCH0006030382N□00 82 5 100 4 1000 3.37 70
BSCH00060303R10□00 100 5 100 4 900 3.74 60







BSCH Series SMD Power Inductor for high frequency applications.


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs

Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, Wurth, We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
