Product Name: |
EP Series Saface Mount Type Gate Drive Transformer |
Bobbin Shape: |
Vertical |
Usage: |
Oil Test Equipment |
Surface: |
SMT |
Type: |
EP Series |
Sample: |
Free Samples Available |
Product Name: |
EP Series Saface Mount Type Gate Drive Transformer |
Bobbin Shape: |
Vertical |
Usage: |
Oil Test Equipment |
Surface: |
SMT |
Type: |
EP Series |
Sample: |
Free Samples Available |
EP Series Saface Mount Type Gate Drive Transformer
D Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | 10 kHz/ 100 mV | L | 370 | μH | min. |
| Leakage inductance | 100 kHz/ 100 mV | LS | 1.8 | μH | max. |
| DC Resistance 1 | RDC | 520 | mΩ | max. | |
| DC Resistance 2 | RDC | 640 | mΩ | max. | |
| Turns ratio | n | 1:1 | |||
| Voltage-μSecond | B = 280 mT | ∫Udt | 30.2 | μVs | typ. |
| Interwinding capacitance | 100 kHz/ 100 mV | CWW | 10 | pF | typ. |
| Rated voltage | UR | 80 | V (DC) | ||
| Insulation test voltage | UT | 1500 | V (DC) |
E General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.

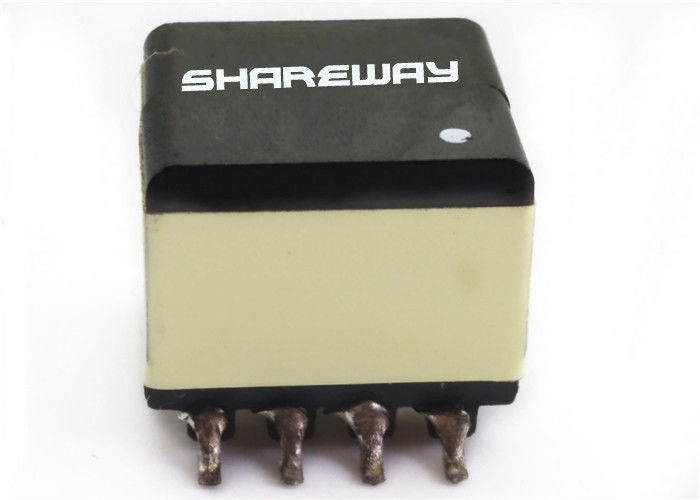

Product Picture:
EP Series Saface Mount Type Gate Drive Transformer
