Small Signal Transformer , EE EFD ER EPC PQ Small Electrical Transformer

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Tray, Tape or Reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price
Highlight:

small signal isolation transformer

,

small step down transformer

Product Name:
EE EFD ER EPC PQ Type Electrical Power Small Signal Transformer
Item:
Transformer
Type:
Horizontal
Rated Capacity:
30-3000kva
Power:
1w-10000w
Rated Voltage:
15KV
Product Name:
EE EFD ER EPC PQ Type Electrical Power Small Signal Transformer
Item:
Transformer
Type:
Horizontal
Rated Capacity:
30-3000kva
Power:
1w-10000w
Rated Voltage:
15KV
Small Signal Transformer , EE EFD ER EPC PQ Small Electrical Transformer

EE EFD ER EPC PQ type electrical power Small Signal Transformer


D Electrical Properties:

Properties Test conditions   Value Unit Tol.
Inductance 100 kHz/ 100 mV L 100 μH ±25%
Turns ratio   n 6:1:1:3   ±3%
Saturation current |ΔL/L| < 20% Isat 1 A typ.
DC Resistance 1 @ 20°C RDC1 32 max.
DC Resistance 2 @ 20°C RDC2 8 max.
DC Resistance 3 @ 20°C RDC3 8 max.
DC Resistance 4 @ 20°C RDC4 97 max.
Leakage inductance 100 kHz/ 100 mV LS 0.5 μH max.
Insulation test voltage prim => sec UT 1500 V (AC)
Insulation test voltage N2 => N3, N1 => N4 UT 500 V (AC)
Voltage-μSecond B = 280 mT ∫Udt 106.5 μVs typ.



E General information:

It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.

  • Storage Temperature: -20°C to 60°C
  • Operating Temperature: -40°C to 125°C
  • Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently



D2 Application Properties:

Properties   Value Unit
Input voltage (N1) Ui 33-57 V (DC)
Output voltage 1 (N2) UO1 3.3 V
Output current 1 (N2) IO1 8 A
Output voltage 2 (N3) UO2 3.3 V
Output current 2 (N3) IO2 8 A
Auxiliary voltage (N4) Uaux 10 V
Switching frequency fswitch 200-400 kHz

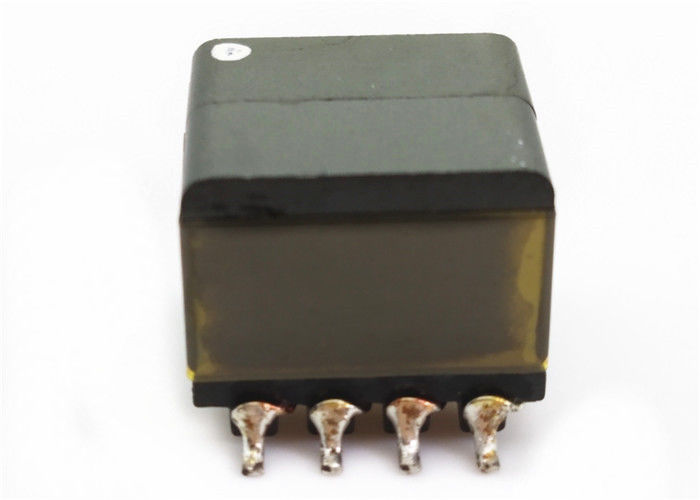

Product Picture:

Small Signal Transformer , EE EFD ER EPC PQ Small Electrical Transformer 0





EE EFD ER EPC PQ type electrical power Small Signal Transformer


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
