Black Drum Core Inductor 11R102C For Low / Medium Current Application

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: 11R102C

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: 200 pieces per bag

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price
Highlight:

drum core inductor

,

class d inductor

Product Name:
11R102C Through Hole Inductor For Low To Medium Current Applications
Type:
H Type Drum Core
Application:
Low To Medium Current Applications
Shield:
Shielded / Unshielded
Inductance:
Support Custom
Color:
Black
Product Name:
11R102C Through Hole Inductor For Low To Medium Current Applications
Type:
H Type Drum Core
Application:
Low To Medium Current Applications
Shield:
Shielded / Unshielded
Inductance:
Support Custom
Color:
Black
Black Drum Core Inductor 11R102C For Low / Medium Current Application

11R102C Through Hole Inductor For Low To Medium Current Applications


Description:

The 1100R Series is a general purpose range of inductors suitable for low to medium current
applications. Their small footprint makes them ideal for high density applications where a chip
inductor will not cope with the power requirement.



Feature:

  • RoHS compliant
  •  Radial format
  • Up to 3.0A IDC
  • 1.0 to 470μH
  •  Low DC resistance
  • Compact size
  • Supplied in bags of 200
  • UL VW-1 rated sleeving
  • Backward compatible with Sn/Pb soldering systems
  • Custom products available



Part number Inductance
(1kHz, 0.1VAC)
DC Current1 DC Resistance
DC Resistance Max. Max.
μH A Ω
11R102C 1.0 ±20% 3.00 0.02
11R152C 1.5 ±20% 2.40 0.03
11R222C 2.2 ±20% 1.90 0.05
11R332C 3.3 ±20% 1.50 0.07
11R472C 4.7 ±20% 1.30 0.09
11R682C 6.8 ±20% 1.10 0.10
11R103C 10 0.95 0.14
11R153C 15 0.80 0.19
11R223C 22 0.65 0.27
11R333C 33 0.55 0.42
11R473C 47 0.50 0.54
11R683C 68 0.40 0.85
11R104C 100 0.35 1.10
11R154C 150 0.30 1.65
11R224C 220 0.24 2.40
11R334C 330 0.19 3.60
11R474C 470 0.14 6.40





11R102C Through Hole Inductor For Low To Medium Current Applications


Shape and Dimensions:

Black Drum Core Inductor 11R102C For Low / Medium Current Application 0

Black Drum Core Inductor 11R102C For Low / Medium Current Application 1

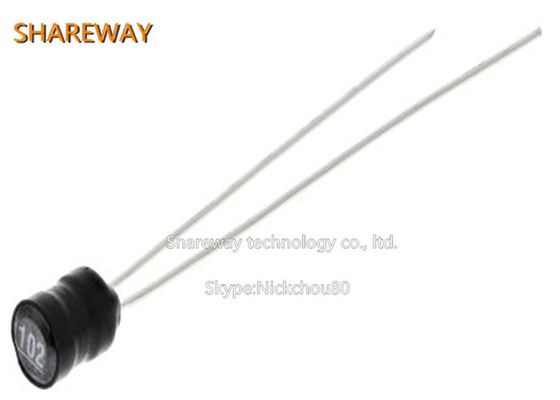

Product Picture:

Black Drum Core Inductor 11R102C For Low / Medium Current Application 2





11R102C Through Hole Inductor For Low To Medium Current Applications


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs

Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
