Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 34L122C
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
34L122C Slim SMD Power Inductor Useful In EMI Sensitive Applications. |
Size: |
5.2mm*5.2mm*1.2mm |
Posture: |
Slim |
Shield: |
Shielded |
Mount: |
Surface Mount |
Color: |
Black, Grey |
Product Name: |
34L122C Slim SMD Power Inductor Useful In EMI Sensitive Applications. |
Size: |
5.2mm*5.2mm*1.2mm |
Posture: |
Slim |
Shield: |
Shielded |
Mount: |
Surface Mount |
Color: |
Black, Grey |
34L122C Slim SMD Power Inductor useful in EMI sensitive applications.
Description:
The 3400L series is a lower profile version of our 3400 series range of bobbin-wound, shielded
inductors. They are suitable for power-line filtering found in consumer electronics such as
desktop computers, handheld devices and GPS systems, as well as in a vast range of industrial
and telecom applications including network hubs, bridges/routers, and high frequency wireless
communication devices.These surface mount inductors are extremelycompact and have an integral
shield, making them useful in EMI sensitive applications.
Feature:
| Part number | Inductance, L | DC Current 2 | DC Resistance |
| ±20% | Max. | Max. | |
| μH | A | Ω | |
| 34L122C | 1.2 ± 30% | 1.70 | 0.075 |
| 34L152C | 1.5 ± 30% | 1.65 | 0.085 |
| 34L222C | 2.2 ± 30% | 1.35 | 0.100 |
| 34L332C | 3.3 ± 30% | 1.00 | 0.150 |
| 34L472C | 4.7 ± 30% | 0.70 | 0.180 |
| 34L682C | 6.8 ± 30% | 0.68 | 0.265 |
| 34L103C | 10 | 0.66 | 0.325 |
| 34L153C | 15 | 0.65 | 0.520 |
| 34L223C | 22 | 0.48 | 0.780 |
| 34L333C | 33 | 0.36 | 1.180 |
| 34L473C | 47 | 0.31 | 1.820 |
| 34L683C | 68 | 0.28 | 2.130 |
| 34L104C | 100 | 0.24 | 3.330 |
| 34L154C | 150 | 0.18 | 6.100 |
| 34L224C | 220 | 0.16 | 8.000 |
34L122C Slim SMD Power Inductor useful in EMI sensitive applications.
Shape and Dimensions:

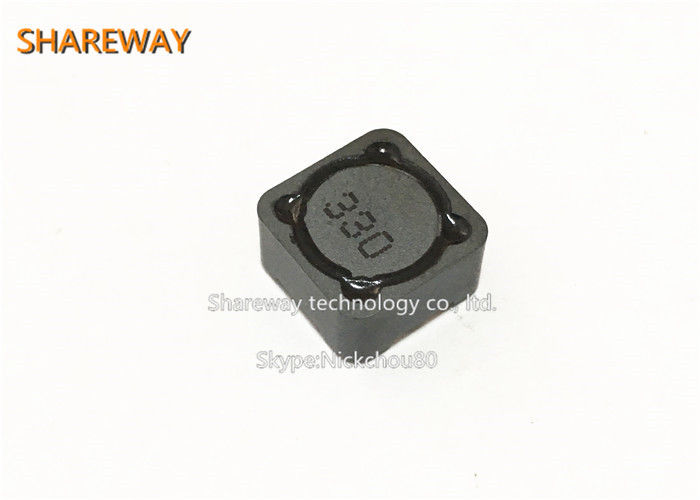

Product Picture:
34L122C Slim SMD Power Inductor useful in EMI sensitive applications.
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
