MID-PPTI Push Pull SMPS Flyback Transformer LPT4545ER100LK Single Phase FBT

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: LPT4545ER100LK

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Tray, Tape or Reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price
Highlight:

ferrite core transformer

,

small flyback transformer

Product Name:
LPT4545ER100LK SMPS Flyback Transformer MID-PPTI Push-Pull Transformers
Type:
MID-PPTI Push-Pull Transformers
Application:
CAN, RS-485, RS-422, RS-232, SPI, I2C, Lower-Power LAN
Size:
10.05mm*6.73mm*4.19mm
Operating Temp:
-40°C To 125°C
Phase:
Single
Product Name:
LPT4545ER100LK SMPS Flyback Transformer MID-PPTI Push-Pull Transformers
Type:
MID-PPTI Push-Pull Transformers
Application:
CAN, RS-485, RS-422, RS-232, SPI, I2C, Lower-Power LAN
Size:
10.05mm*6.73mm*4.19mm
Operating Temp:
-40°C To 125°C
Phase:
Single
MID-PPTI Push Pull SMPS Flyback Transformer LPT4545ER100LK Single Phase FBT

LPT4545ER100LK SMPS Flyback Transformer MID-PPTI Push-Pull Transformers


ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER TEST CONDITIONS VALUE
D.C RESISTANCE                       1-3 @20°C 0.31 ohms max
D.C RESISTANCE                       6-4 @20°C 0.33 ohms max
INDUCTANCE                             1-3 100KHz, 100mVAC,Ls 475uH min
DIELECTRIC                               1-6 3125VAC, 1 second 2500VAC,1 minute
TURNS RATIO (6-4):(1-3) 1.1:1,±2%



GENERAL SPECIFICATIONS:

  • OPERATING TEMPERATURE RANGE: -40°C TO +125°C
  • CURRENT RATING: 150mAAC
  • VOLTAGE- TIME: 11VuS
  • Designed to comply with the following requirements as defined by IEC60950-1,EN60950-1, UL60950-1/CSA60950-1 and NZS60950.1:                           - Functional insulation for a primary circuit at a working voltage of 400Vrms.
  • Qualified to AEC-Q200.



Product Picture:

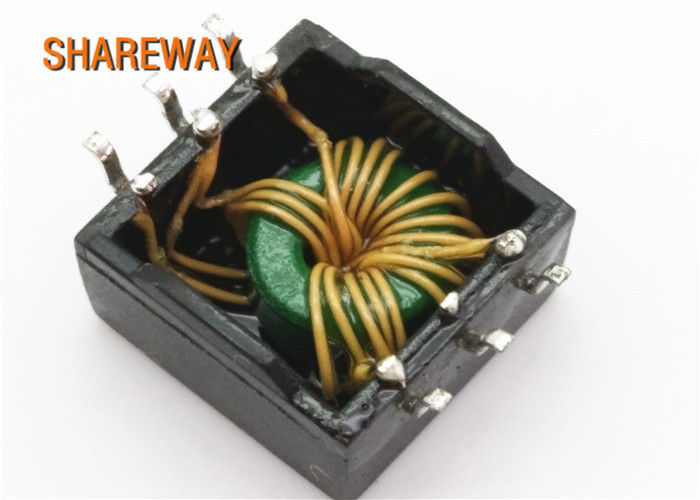

MID-PPTI Push Pull SMPS Flyback Transformer LPT4545ER100LK Single Phase FBT 0
