Mobile Phone Charger Transformer With Small Mn-Zn Core

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Tray, Tape or Reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price
Highlight:

small flyback transformer

,

high frequency transformer

Product Name:
SMPS Flyback Transformer Battery Charger Transformer
Type:
Battery Charger Transformer
Size:
12.6mm*11.63mm*3.56mm
Shape:
Round
Material:
Mn-Zn
Voltage-time:
8.9Vus
Product Name:
SMPS Flyback Transformer Battery Charger Transformer
Type:
Battery Charger Transformer
Size:
12.6mm*11.63mm*3.56mm
Shape:
Round
Material:
Mn-Zn
Voltage-time:
8.9Vus
Mobile Phone Charger Transformer With Small Mn-Zn Core

SMPS Flyback Transformer Battery Charger Transformer


ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER TEST CONDITIONS VALUE
D.C. RESISTANCE               2-4 @20°C 0.130 ohms max
D.C. RESISTANCE               9-7 @20°C 0.128 ohms max
D.C. RESISTANCE              10-6 @20°C 0.286 ohms max
INDUCTANCE                       2-4 10KHz,10mVAC,Ls 72uH min
LEAKAGE INDUCTANCE           2-4 tie(6+7+8+9+10),100KHz,10mVAC,Ls 160nH typ,24nH max
DIELECTRIC                             2-10 3125vac,1 second 2500VAC, 1 minute
TURNS RATIO (9-7):(2-4) 1.14:1±1%
TURNS RATIO (10-6):(2-4) 2.57:1±1%



GENERAL SPECIFICATIONS:

  • OPERATING TEMPERATURE RANGE: -40°C TO +125°C
  • Designed to comply with the following requirements as defined by IEC60950-1,EN60950-1,UL60950-1/CSA60950-1 and NZS60950.1: - Functional insulation for a primary circuit at a working voltage of 265Vrms.400Vpeak, Overvoltage Category .
  • VOLTAGE- TIME: 8.9VuS
  • COPLANARITY: ALL 10 Terminals must lie on a plane within .004[.10 Surface                                           A after lead thinning.



Product Picture:

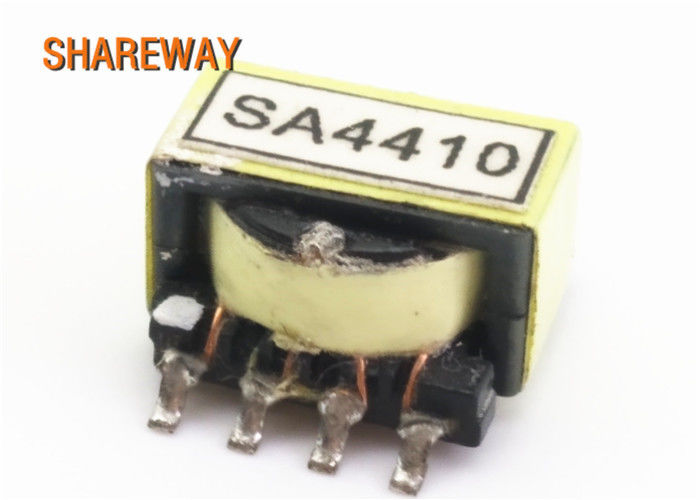

Mobile Phone Charger Transformer With Small Mn-Zn Core 0
