Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray, Tape or Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
12V DC To DC For Electric Current SMPS Flyback Transformer |
Use For: |
Electric Current SMPS Flyback Transformer |
Usage: |
Power |
Material: |
Copper Winding |
DC: |
12V |
Standard: |
IEC |
Product Name: |
12V DC To DC For Electric Current SMPS Flyback Transformer |
Use For: |
Electric Current SMPS Flyback Transformer |
Usage: |
Power |
Material: |
Copper Winding |
DC: |
12V |
Standard: |
IEC |

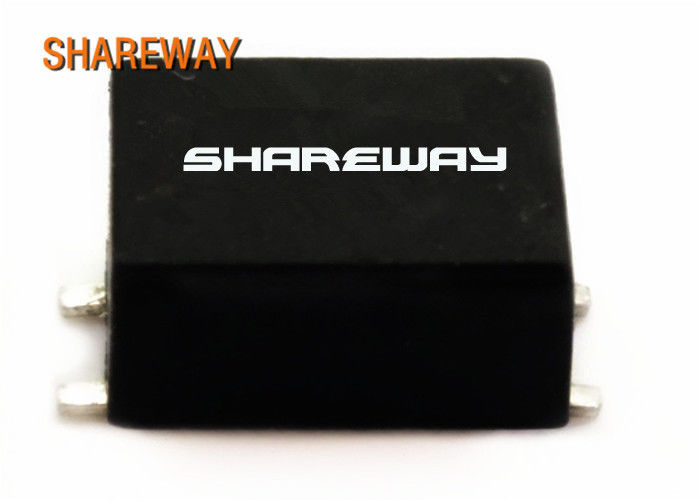

12V DC To DC For Electric Current SMPS Flyback Transformer
ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:
| PARAMETER | TEST CONDITIONS | VALUE |
| D.C. RESISTANCE 2-4 | @20°C | 0.124 ohms max |
| D.C. RESISTANCE 9-7 | @20°C | 0.103 ohms max |
| D.C. RESISTANCE 10-6 | @20°C | 0.464 ohms max |
| INDUCTANCE 2-4 | 10KHz,10mVAC,Ls | 72uH min |
| LEAKAGE INDUCTANCE 2-4 | tie(6+7+8+9+10),100KHz,10mVAC,Ls | 160nH typ,240nH max |
| DIELECTRIC 2-10 | 3125vac,1 second | 2500VAC, 1 minute |
| TURNS RATIO | (2-4):(9-7) | 1.17:1±1% |
| TURNS RATIO | (10-6):(2-4) |
3.14:1±1% |
GENERAL SPECIFICATIONS:
Application:
12V DC To DC For Electric Current SMPS Flyback Transformer
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
