SMD / SMT Ferrite Core Transformer Telecom FTB 1A Current

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Tray, Tape or Reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price
Highlight:

ferrite core transformer

,

small flyback transformer

Product Name:
SMD/SMT Ferrite Core Telecom SMPS Flyback Transformer
Material:
Bobbin, Core, Copper Coil, Etc
Shape:
Vertical , Horizontal
Flyback Transformer::
Inductor Transformer
High Frequency Transformer::
Electrical Transformer
Insulation Class::
Class B, Class F, Class H
Product Name:
SMD/SMT Ferrite Core Telecom SMPS Flyback Transformer
Material:
Bobbin, Core, Copper Coil, Etc
Shape:
Vertical , Horizontal
Flyback Transformer::
Inductor Transformer
High Frequency Transformer::
Electrical Transformer
Insulation Class::
Class B, Class F, Class H

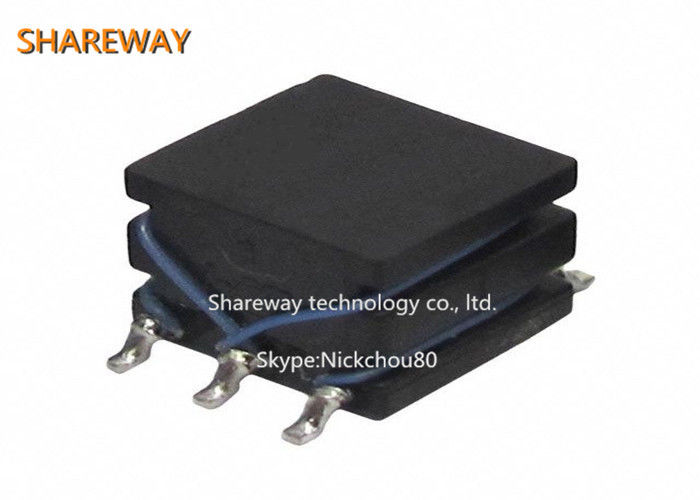

SMD / SMT Ferrite Core Transformer Telecom FTB 1A Current

SMD/SMT Ferrite Core Telecom SMPS Flyback Transformer


ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER TEST CONDITIONS VALUE
D.C. RESISTANCE 1-3 @20°C 0.160 ohms max
D.C. RESISTANCE 6-4 @20°C 0.110 ohms max
INDUCTANCE 1-3 100KHz,10mVAC,Ls 370uH min.
DIELECTRIC 1-6 6250vac,1 second 5000Vrms, 1 minute
TURNS RATIO (1-3):(6-4) 1.3:1±2%



GENERAL SPECIFICATIONS:

  • OPERATING TEMPERATURE RANGE: -40°C TO +85°C .
  • current RATING: 1A
  • VOLTAGE-TIME: 20Vus for Unipolar operation 40Vus for Bipolar operation
  • SWITCHING FREQUENCY: 150KHz min.
  • 11mm min. creepage and clearance between PRI & SEC.
  • COPLANARITY: All 6 terminals must lie on a plane within .004[.10] of Surface A after leaf tinning,
  • Designed to comply with the following requirements as defined by IEC60601-1(ed): Amendment 1: -Providing two means of Patient Protection up to a working voltage of 360VAC.
  • Complies with the following requirements as defined by IEC60950-1, EN60950-1, UL60950-1/CSA60950-1 and AS/NZS60950-1: -Reinforced insulation for a primary circuit at a working voltage of 55-VAC, overvoltage Category II, Pollution Degree 2, up to 2km above sea level

Designed to comply with the following requirements as defined by IEC60664-1: -Reinforced insulation for a primary circuit at a working volatage of 44VAC up to 2km above sea level,

  • Designed to comply with the following requirements as defined by IEC61010-1: -Reinforced insulation for a line to neutral voltage up to 1000Vrms, Overvoltage Category ll, up to 2km above sea level. -Reinforced insulation for a line to neutral voltage up to 600Vrms, Overvoltage Category ll, up to 5km above sea level.
  • Complies with the following requirements as defined by IEC62368-1, UL/CSA62368-1 and EN62368-1: -Reinforced insulation for ES3, operating frequency above 30KHz, working voltage up to 550Vrms, 1600Vpeak , Overvoltage Category ll, Pollution Degreeii , and up to 2km above sea level.
  • Qualified to AEC-Q200
