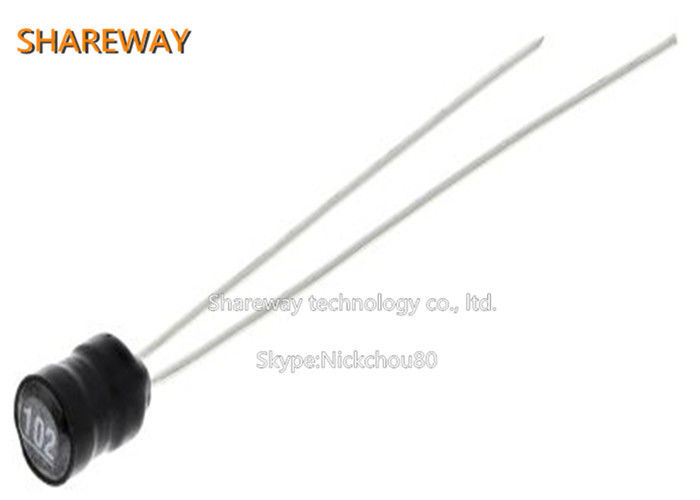

Electronic Equipment Through Hole Inductor 2.2uH 11R222C 5.0*5.0*7.5mm

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: 11R222C

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Supplied in cartons (80 pieces per carton)

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 5000K.PCS/Month

Get Best Price
Highlight:

drum core inductor

,

class d inductor

Product Name:
11R222C 5.0*5.0*7.5mm Through Hole Inductor For Electronic Equipment
Type:
Through Hole Type
Mounting Type:
Surface Mount
Inductance:
2.2uH
Item Name:
Power Inductor 2.2uh
Sample:
Free Samples Available
Product Name:
11R222C 5.0*5.0*7.5mm Through Hole Inductor For Electronic Equipment
Type:
Through Hole Type
Mounting Type:
Surface Mount
Inductance:
2.2uH
Item Name:
Power Inductor 2.2uh
Sample:
Free Samples Available
Electronic Equipment Through Hole Inductor 2.2uH 11R222C 5.0*5.0*7.5mm

11R222C 5.0*5.0*7.5mm Through Hole Inductor For Electronic Equipment


Description:

The 1100R Series is a general purpose range of inductors suitable for low to medium current
applications. Their small footprint makes them ideal for high density applications where a chip
inductor will not cope with the power requirement.



Feature:

  • RoHS compliant
  • Radial format
  • Up to 3.0A IDC
  • 1.0 to 470μH
  • Low DC resistance
  • Compact size
  • Supplied in bags of 200
  • UL VW-1 rated sleeving
  • Backward compatible with Sn/Pb soldering systems
  • Custom products available



Part number Inductance
(1kHz, 0.1VAC)
DC Current1 DC Resistance
DC Resistance Max. Max.
μH A Ω
11R102C 1.0 ±20% 3.00 0.02
11R152C 1.5 ±20% 2.40 0.03
11R222C 2.2 ±20% 1.90 0.05
11R332C 3.3 ±20% 1.50 0.07
11R472C 4.7 ±20% 1.30 0.09
11R682C 6.8 ±20% 1.10 0.10
11R103C 10 0.95 0.14
11R153C 15 0.80 0.19
11R223C 22 0.65 0.27
11R333C 33 0.55 0.42
11R473C 47 0.50 0.54
11R683C 68 0.40 0.85
11R104C 100 0.35 1.10
11R154C 150 0.30 1.65
11R224C 220 0.24 2.40
11R334C 330 0.19 3.60
11R474C 470 0.14 6.40





ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range -40°C to +85°C
Storage temperature range -40°C to 125°C





SOLDERING INFORMATION2
Peak wave solder temperature 260˚C for 10 seconds
Pin fi nish Bright tin

All specifi cations typical at TA=25°C

  • Maximum DC current occurs when either the inductance falls to 90% of its nominal value or when its temperature rise reaches 30°C, whichever is sooner.
