Product Name: |
High Current, Low DCR Shielded Power Inductors SER1052-801ML_ |
Size: |
11*10.2*5.2mm |
Weight: |
1.6 G |
Base: |
10.2 × 11 Mm Base |
Inductance: |
0.8uH |
Packaging: |
–40°C To +80°C |
Product Name: |
High Current, Low DCR Shielded Power Inductors SER1052-801ML_ |
Size: |
11*10.2*5.2mm |
Weight: |
1.6 G |
Base: |
10.2 × 11 Mm Base |
Inductance: |
0.8uH |
Packaging: |
–40°C To +80°C |

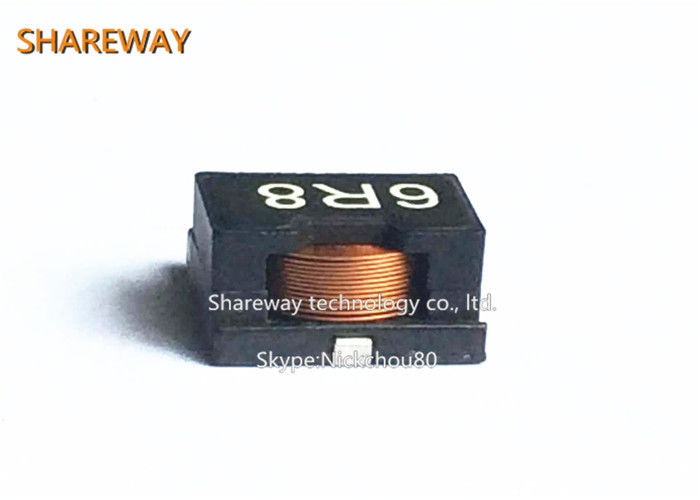

High current, low DCR shielded power inductors SER1052-801ML_
Description:
• High current, low DCR shielded power inductors
• 10.2 × 11 mm base; only 5.2 mm tall
Core material: Ferrite
Terminations RoHS compliant tin-silver over tin over nickel over phos-bronze (pins 1 and 2); matte tin over nickel over phos-bronze (pin 3).
Other terminations are available at additional cost.
Weight 1.6 g
Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
| Part number |
Inductance ±20% (μH) |
DCR max (mOhm) |
SRF typ (MHz) |
Isat (A) | Irms (A) | |||
| 10% drop | 20% drop | 30% drop | 20°C rise | 40°C rise | ||||
| SER1052-801ML_ | 0.80 | 4.0 | 100 | 24.9 | 25.2 | 25.6 | 12.5 | 16.3 |
| SER1052-102ML_ | 1.0 | 4.0 | 95 | 16.5 | 17.0 | 17.5 | 12.5 | 16.3 |
| SER1052-122ML_ | 1.2 | 6.0 | 91 | 20.5 | 21.0 | 21.3 | 11.0 | 15.0 |
| SER1052-132ML_ | 1.3 | 4.0 | 81 | 12.9 | 16.8 | 17.2 | 12.5 | 16.3 |
| SER1052-152ML_ | 1.5 | 4.0 | 75 | 13.5 | 14.0 | 14.5 | 11.0 | 15.0 |
| SER1052-182ML_ | 1.8 | 6.0 | 70 | 13.3 | 13.8 | 14.3 | 11.0 | 15.0 |
| SER1052-202ML_ | 2.0 | 9.0 | 65 | 15.3 | 15.8 | 16.2 | 8.5 | 11.5 |
| SER1052-222ML_ | 2.2 | 4.0 | 58 | 8.9 | 9.6 | 10.0 | 12.5 | 16.3 |
| SER1052-252ML_ | 2.5 | 7.5 | 55 | 11.4 | 11.8 | 12.1 | 9.0 | 12.0 |
| SER1052-322ML | 3.3 | 6.0 | 53 | 7.3 | 7.8 | 8.5 | 11.0 | 15.0 |
| SER1052-402ML_ | 4.0 | 9.0 | 47 | 8.3 | 8.5 | 8.8 | 8.5 | 11.5 |
| SER1052-432ML_ | 4.3 | 7.5 | 44 | 6.4 | 6.8 | 7.0 | 9.0 | 12.0 |
| SER1052-572ML_ | 5.7 | 9.0 | 35 | 5.4 | 5.8 | 6.0 | 8.5 | 11.5 |
High current, low DCR shielded power inductors SER1052-801ML_
Shape and Dimensions:
