Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: DO5010H Series
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 250pcs/reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
Power Inductor DO5010H Series Heavy Gauge Wire For Low DC Resistance |
Type: |
Power Inductor |
Application: |
Low DC Resistance |
Weight: |
3.2 – 4.0 G |
Irms Ratings: |
15 A |
Saturation Currents: |
30 A |
Product Name: |
Power Inductor DO5010H Series Heavy Gauge Wire For Low DC Resistance |
Type: |
Power Inductor |
Application: |
Low DC Resistance |
Weight: |
3.2 – 4.0 G |
Irms Ratings: |
15 A |
Saturation Currents: |
30 A |

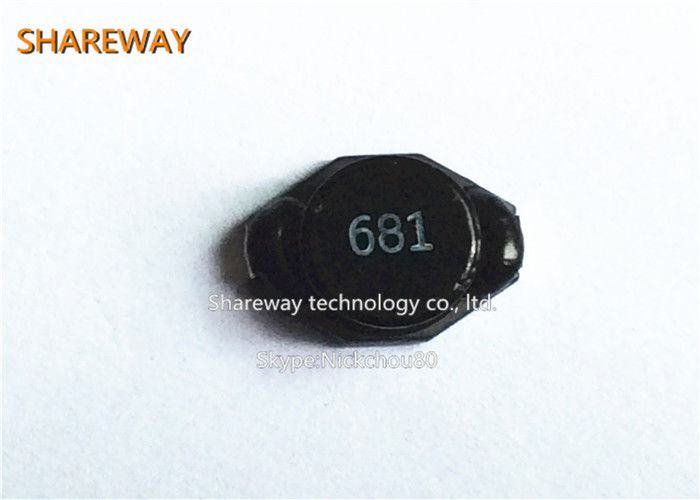

Power Inductor DO5010H Series Heavy gauge wire for low DC resistance
Description:
• Irms ratings up to 15 A; saturation currents up to 30 A
• Heavy gauge wire for low DC resistance
Core material Ferrite
Terminations RoHS compliant tin-silver over copper. Other
terminations available at additional cost.
Weight 3.2 – 4.0 g
Ambient temperature –40°C to +85°C with Irms current, +85°C to
+125°C with derated current
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 250 per 13″ reel Plastic tape: 32 mm wide,
0.38 mm thick, 24 mm pocket spacing, 7.8 mm pocket depth
| Part number |
Inductance ±20% (μH) |
DCR max (Ohms) |
SRF typ (MHz) |
Isat (A) |
Irms (A) |
| DO5010H-781ML_ | 0.78 | 2.6 | 156 | 30 | 15 |
| DO5010H-152ML_ | 1.5 | 4.0 | 100 | 25 | 15 |
| DO5010H-222ML_ | 2.2 | 6.1 | 75 | 20 | 12 |
| DO5010H-332ML_ | 3.3 | 8.6 | 60 | 17 | 10 |
| DO5010H-392ML_ | 3.9 | 10 | 55 | 15 | 9.0 |
| DO5010H-472ML_ | 4.7 | 14 | 40 | 13 | 8.4 |
| DO5010H-602ML_ | 6.0 | 17 | 35 | 12 | 7.5 |
| DO5010H-782ML_ | 7.8 | 18 | 35 | 11 | 7.5 |
| DO5010H-103ML_ | 10 | 26 | 28 | 10 | 6.0 |
| DO5010H-123ML_ | 12 | 28 | 26 | 8.5 | 5.2 |
| DO5010H-153ML_ | 15 | 32 | 20 | 8.0 | 4.4 |
| DO5010H-223ML_ | 22 | 47 | 20 | 7.0 | 3.5 |
| DO5010H-333ML_ | 33 | 66 | 15 | 5.5 | 3.0 |
| DO5010H-473ML_ | 47 | 86 | 9 | 3.5 | 2.6 |
| DO5010H-683ML_ | 68 | 130 | 8 | 3.5 | 2.3 |
| DO5010H-104ML_ | 100 | 190 | 7 | 3.0 | 1.8 |
| DO5010H-154ML_ | 150 | 250 | 6 | 2.6 | 1.5 |
| DO5010H-224ML_ | 220 | 380 | 5 | 2.4 | 1.2 |
| DO5010H-334ML_ | 330 | 560 | 4 | 1.9 | 1.0 |
| DO5010H-474ML_ | 470 | 850 | 3 | 1.4 | 0.82 |
| DO5010H-684ML_ | 680 | 1100 | 2.5 | 1.2 | 0.72 |
| DO5010H-105ML_ | 1000 | 1800 | 2.0 | 1.0 | 0.56 |
Power Inductor DO5010H Series Heavy gauge wire for low DC resistance
Shape and Dimensions:
