Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 744104
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
167uH 1.35A Toroidal Differential Mode Storage Inductors 744104 |
Application: |
Car Audio |
Type: |
Toroidal Inductor |
Core: |
Ferrite |
Inductance: |
167 UH |
Rated Current: |
1.35A |
Product Name: |
167uH 1.35A Toroidal Differential Mode Storage Inductors 744104 |
Application: |
Car Audio |
Type: |
Toroidal Inductor |
Core: |
Ferrite |
Inductance: |
167 UH |
Rated Current: |
1.35A |

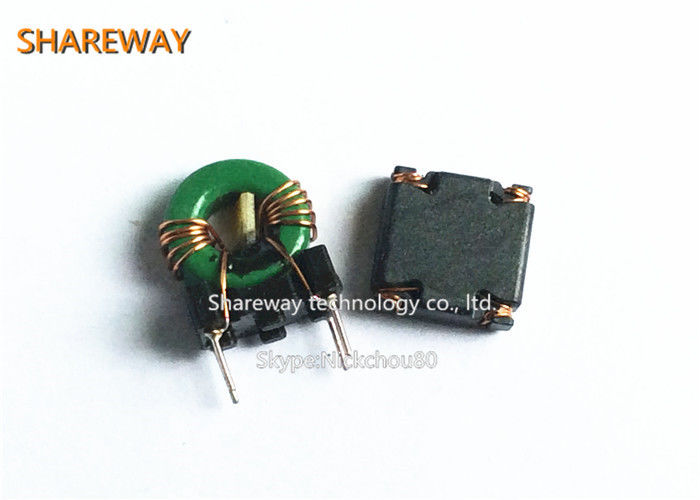

167uH 1.35A Toroidal Differential Mode Storage Inductors 744104
E General information:
It is recommended that the temperature of the part does not exceed 105°C under
worst case operating conditions.
• Ambient temperature: -40°C to +65°C (refering to IR)
• Operating temperature: -40°C to +105°C
• Storage temperature (in tray packaging): -20°C to +40°C; 75% RH max.
• Test conditions of Electrical Properties: 20°C, 33% RH
if not specified differently
D Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | 10 kHz / 5 mA | L | 167 | μH | ±20% |
| Rated inductance | 10 kHz / 5 mA / IR | LR | 135 | μH | typ. |
| Rated current | ΔT = 40 K | IR | 1.35 | A | max. |
| Saturation current | |ΔL/L| < 10% | Isat | 0.72 | A | typ. |
| DC Resistance | @ 20°C | RDC | 0.4 | Ω | max. |
| Self resonant frequency | fres | 4.1 | MHz | typ. |
