Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 46223C
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 1000pcs/reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
SMD Bobbin-wound Shielded Inductors 46223C For LED Applications |
Feature: |
Bobbin Format |
Size: |
7.3*7.3*4.55mm |
Application: |
ED Applications |
Weight: |
0.8g |
Pin Fi Nish: |
Tin |
Product Name: |
SMD Bobbin-wound Shielded Inductors 46223C For LED Applications |
Feature: |
Bobbin Format |
Size: |
7.3*7.3*4.55mm |
Application: |
ED Applications |
Weight: |
0.8g |
Pin Fi Nish: |
Tin |

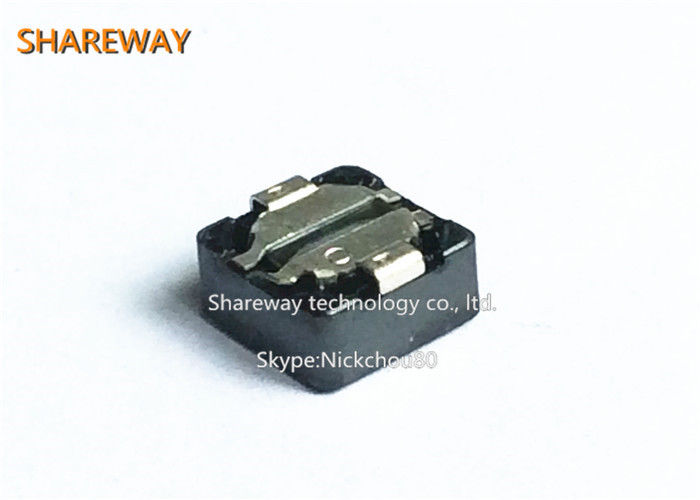

SMD bobbin-wound shielded inductors 46223C for LED applications
FEATURES:
The 4600 series is a range of bobbin-wound,
shielded inductors suitable for power-line fi ltering
found in consumer electronics such as desktop
computers, LED applications and GPS systems,
as well as in a vast range of industrial and
telecom applications including network hubs,
bridges & routers, and high frequency wireless
communication devices.
These surface mount inductors are extremely
compact and have an integral shield, making them
useful in EMI sensitive applications.
| Order Code | Inductance (10kHz, 0.1VAC) ±20% |
DC Current | DC Resistance |
| Nom. | Max. | Max. | |
| μH | A | mΩ | |
| 46223C | 22 | 1.8 | 120 |
| 46333C | 33 | 1.45 | 190 |
| 46473C | 47 | 1.25 | 260 |
| 46683C | 68 | 1.05 | 360 |
| 46104C | 100 | 0.86 | 500 |
| 46154C | 150 | 0.72 | 720 |
| 46224C | 220 | 0.57 | 1050 |
| 46334C | 330 | 0.46 | 1850 |
| 46474C | 470 | 0.39 | 2800 |
| 46684C | 680 | 0.32 | 3900 |
| 46105C | 1000 | 0.27 | 4900 |
SMD bobbin-wound shielded inductors 46223C for LED applications
Shape and Dimensions:
