Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: MOX-SPIL-0402
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
MOX-SPIL-0402 Shielded Power Inductors For LCD Televisions And Digital Cameras |
Application: |
LCD Televisions And Digital Cameras |
Type: |
Shielded Power Inductors |
Size: |
6.6*4.45*2.93mm |
Inductance: |
1.0 - 10000uH |
Operating Temperature: |
-40°C To +85°C |
Product Name: |
MOX-SPIL-0402 Shielded Power Inductors For LCD Televisions And Digital Cameras |
Application: |
LCD Televisions And Digital Cameras |
Type: |
Shielded Power Inductors |
Size: |
6.6*4.45*2.93mm |
Inductance: |
1.0 - 10000uH |
Operating Temperature: |
-40°C To +85°C |

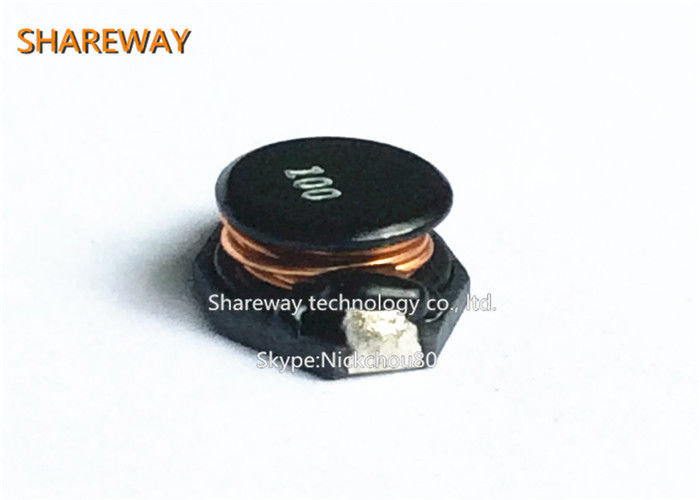

MOX-SPIL-0402 shielded power inductors for LCD televisions and digital cameras
Description:
SPIL-0402 series of surface mount shielded power inductors are
widely used in PDA’s, notebooks, LCD televisions and digital cameras.
Features :
• Low cost.
• Flat top for pick & place machines.
• Available Tolerances: ±10% & ±20%.
• RoHS compliant.
• Magnetically shielded applications.
| Part Number | Inductance (μH) |
Tolerance (%) |
DCR (Ω) Maximum |
Irms Max. (A) |
L Test Frequency |
| MOX-SPIL-0402-1R0M | 1.0 | 20% (M) | 0.040 | 3.00 | 100 kHZ |
| MOX-SPIL-0402-1R5M | 1.5 | 20% (M) | 0.045 | 2.80 | 100 kHZ |
| MOX-SPIL-0402-2R2M | 2.2 | 20% (M) | 0.050 | 1.80 | 100 kHZ |
| MOX-SPIL-0402-3R3M | 3.3 | 20% (M) | 0.055 | 1.60 | 100 kHZ |
| MOX-SPIL-0402-4R7M | 4.7 | 20% (M) | 0.065 | 1.40 | 100 kHZ |
| MOX-SPIL-0402-6R8M | 6.8 | 20% (M) | 0.070 | 1.20 | 100 kHZ |
| MOX-SPIL-0402-100M | 10 | 20% (M) | 0.075 | 1.00 | 100 kHZ |
| MOX-SPIL-0402-150M | 15 | 20% (M) | 0.090 | 0.80 | 100 kHZ |
| MOX-SPIL-0402-220M | 22 | 20% (M) | 0.11 | 0.70 | 100 kHZ |
| MOX-SPIL-0402-330M | 33 | 20% (M) | 0.19 | 0.60 | 100 kHZ |
| MOX-SPIL-0402-470M | 47 | 20% (M) | 0.23 | 0.50 | 100 kHZ |
| MOX-SPIL-0402-680M | 68 | 20% (M) | 0.29 | 0.40 | 100 kHZ |
| MOX-SPIL-0402-101M | 100 | 20% (M) | 0.48 | 0.30 | 100 kHZ |
| MOX-SPIL-0402-151M | 150 | 20% (M) | 0.59 | 0.26 | 100 kHZ |
| MOX-SPIL-0402-221M | 220 | 20% (M) | 0.90 | 0.22 | 100 kHZ |
| MOX-SPIL-0402-331M | 330 | 20% (M) | 1.40 | 0.20 | 100 kHZ |
| MOX-SPIL-0402-471M | 470 | 20% (M) | 1.80 | 0.19 | 100 kHZ |
| MOX-SPIL-0402-681M | 680 | 20% (M) | 2.20 | 0.18 | 100 kHZ |
| MOX-SPIL-0402-102M | 1000 | 20% (M) | 4.20 | 0.15 | 100 kHZ |
| MOX-SPIL-0402-152M | 1500 | 20% (M) | 4.20 | 0.12 | 100 kHZ |
| MOX-SPIL-0402-222M | 2200 | 20% (M) | 8.50 | 0.10 | 100 kHZ |
| MOX-SPIL-0402-332M | 3300 | 20% (M) | 11.00 | 0.08 | 100 kHZ |
| MOX-SPIL-0402-472M | 4700 | 20% (M) | 13.90 | 0.06 | 100 kHZ |
| MOX-SPIL-0402-682M | 6800 | 20% (M) | 25.00 | 0.04 | 100 kHZ |
| MOX-SPIL-0402-103M | 10000 | 20% (M) | 32.80 | 0.02 | 100 kHZ |
MOX-SPIL-0402 shielded power inductors for LCD televisions and digital cameras
Shape and Dimensions:
