Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: MOXIE HCP-1188 SERIES
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
Magnetically Shielded Construction SMD Power Inductor MOXIE HCP-1188 SERIES |
Application: |
AC Adapter |
Inductance: |
2.2 - 15uH |
Shielded: |
Magnetically Shielded Construction |
Type: |
Molded SMD |
Sample: |
Free Sample |
Product Name: |
Magnetically Shielded Construction SMD Power Inductor MOXIE HCP-1188 SERIES |
Application: |
AC Adapter |
Inductance: |
2.2 - 15uH |
Shielded: |
Magnetically Shielded Construction |
Type: |
Molded SMD |
Sample: |
Free Sample |

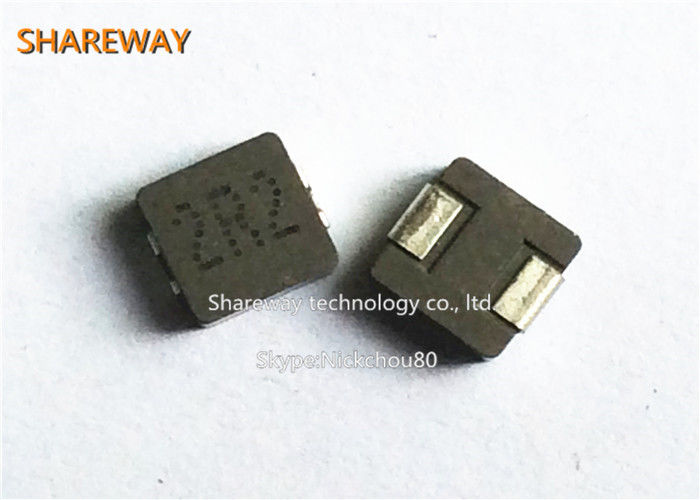

Magnetically shielded construction SMD Power Inductor MOXIE HCP-1188 SERIES
Description:
nductors,small transformer made with soft ferrite core, include NiZn, MnZn, Amorphous, Iron powder metal core for winding, tinned, guled,content toroidal inductor, rod inductor, drum inductor,smd chip inductor coil,widely used in many PCB boards, for filers, EMI/EMC, Anti-noise,Amplifier,RF transformer,.....
Application:
Led light driver, GPS,Computer,Audio/video components, Electric PCB board,switch,various current circuits,filters,AC adapter,air conditioning,Car Ignitor,...ETC
| PART NUMBER | INDUCTANCE | TOLERANCE | DCR(mΩ) NOM / MAX |
ISAT (A) DROP ≤30% |
IRMS (A) RISE≤40°C |
| MOX-HCP-1188-2R2M | 2.20 | ±20% | 2.15 / 2.40 | 32.00 | 33.50 |
| MOX-HCP-1188-3R3M | 3.30 | ±20% | 3.35 / 3.72 | 25.00 | 26.50 |
| MOX-HCP-1188-4R7M | 4.70 | ±20% | 5.35 / 5.90 | 24.00 | 25.60 |
| MOX-HCP-1188-5R6M | 5.60 | ±20% | 6.35 / 7.02 | 21.25 | 23.70 |
| MOX-HCP-1188-6R8M | 6.80 | ±20% | 7.55 / 8.35 | 18.75 | 22.00 |
| MOX-HCP-1188-8R2M | 8.20 | ±20% | 12.35 / 12.85 | 18.25 | 17.50 |
| MOX-HCP-1188-100M | 10.00 | ±20% | 10.00 / 13.25 | 17.75 | 15.60 |
| MOX-HCP-1188-150M | 15.00 | ±20% | 14.05 / 14.50 | 15.60 | 14.00 |
Magnetically shielded construction SMD Power Inductor MOXIE HCP-1188 SERIES
Shape and Dimensions:
