Single Port Modular Magnetic RJ45 Jack / Female Magnetic Ethernet Jack

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris

I'm Online Chat Now

Single Port Modular Magnetic RJ45 Jack / Female Magnetic Ethernet Jack

Single Port Modular Magnetic RJ45 Jack / Female Magnetic Ethernet Jack
Single Port Modular Magnetic RJ45 Jack / Female Magnetic Ethernet Jack

Large Image :  Single Port Modular Magnetic RJ45 Jack / Female Magnetic Ethernet Jack

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description

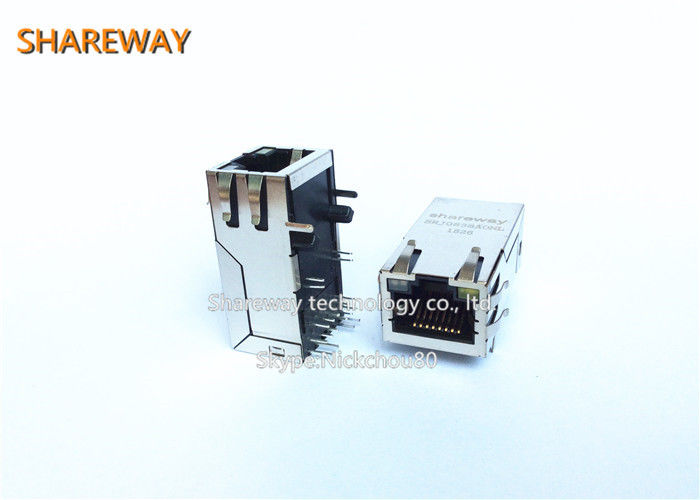

Product Name: Single Port Modular Jack RJ45 Female Magnetic Connector Size: 25.3*16.2*13.5
Turns Ratio: 1 : 1 Inductance: 350uH MIN
Base Material: Ferrit/ Ferrite Shield: Over 0.01" Cooper Alloy
High Light:

rj45 surface mount jack

,

ethernet rj45 jack

Single port modular jack RJ45 female magnetic connector


C Elektrische Eigenschaften / electrical properties :

properties test conditions   value unit tol.
Inductance 100kHz / 100mV @ 8mA
DC-Bias
OCL 350 μH min.
Turns ratio 100kHz / 100mV TR 1 : 1 Tx 3%
Turns ratio 100kHz / 100mV TR 1 : 1 Rx 3%
Insertion Loss 1-100MHz IL -1,0 dB max.
Return Loss 1-10MHz @ 100Ω RL -18 dB min.
Return Loss 10-30MHz @ 100Ω RL -16,0 dB min.
Return Loss 30-60MHz @ 100Ω RL -13,5 dB min.
Return Loss 60-80MHz @ 100Ω RL -12 dB min.
Common Mode
Rejection
1-100MHz CCMR -30 dB min.
Crosstalk 1-100MHz CT -30 dB min.



base material:  Ferrit/ ferrite

wire :     4UEW 155°C

contact plating :  100% tin w. nickel underpalting 30μ"gold plating on contact area

housing :  Thermoplastic UL-94V0

LED :  1,8-2,8 V/ 20mA

Shield : 50μ" nickel over 0.01" cooper alloy

operating temperature :  -40°C - + 85°C

Hipot test : 1500Vrms 1min
