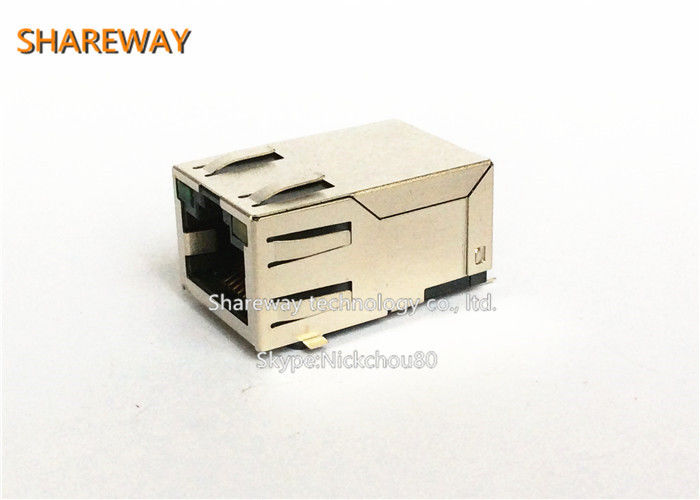

Ethernet Magnetic Rj45 Female Connector 90 Degree Socket

Ethernet Magnetic Rj45 Female Connector 90 Degree Socket
Ethernet Magnetic Rj45 Female Connector 90 Degree Socket

Large Image :  Ethernet Magnetic Rj45 Female Connector 90 Degree Socket

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 74990110030

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: 90 Degree Socket Female Ethernet Magnetic RJ45 Connector Jack Type: 10/100Base-T RJ45 Connector
Speed: 10/100Base-T Material: PBT
Shield: Shielded Sample: Free
High Light:

rj45 surface mount jack

,

ethernet rj45 jack

90 degree socket Female Ethernet Magnetic RJ45 Connector Jack


Description:

  •  Insert: Plastic: Reinforced FR PA66-B30 UL94V-0.
  •  Contact Area: Phosphor Bronze, Gold Plated,6U~50U Optional.
  •  PCB Terminal: Phosphor Bronze, Tail-Tin over Nickel
  •  Housing: Reinforced FR PA66-B30 UL94V-0.
  •  Metal Shell: Copper Alloy, Nickel Plated
  •  Case: Phenolic, UL94V-0 Black.



1.Inductance : 350uH,MIN @100KHZ,0.1Vrms,8mA DC Bias
2.Turns Ratio : P1-2:J1-1=1CT:1+/-3%
  P3-6:J3-6=1CT:1+/-3%
3.Insertion Loss : 1~100MHZ -1.0dB MAX.
4.Return Loss : 1~10MHZ -20dB MIN .Load 100 OHMS
  10~30MHZ -16dB MIN .Load 100 OHMS
  30~60MHZ -12dB MIN .Load 100 OHMS
  60~80MHZ -10dB MIN .Load 100 OHMS
5.Common Mode Rejection : 1~50 MHZ -30dB MIN
  50~100MHZ -20dB MIN
6.Cross Talk : 1~100MHZ -30dBMIN
7.Hi-Pot Test : 1500Vrms 60sec. @PCB Side to Cable Side
