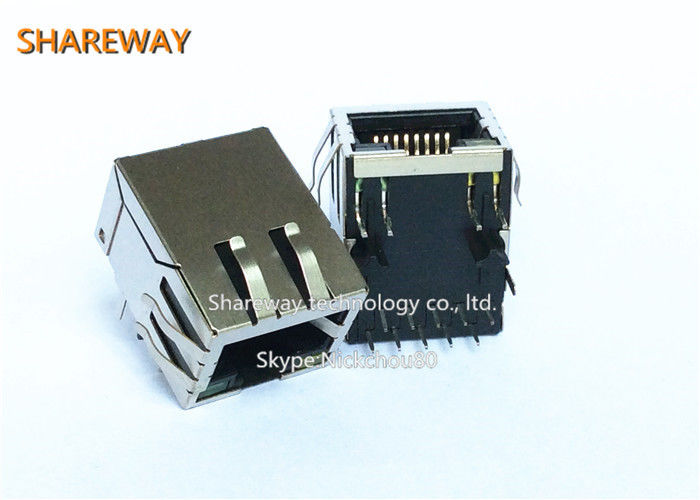

10 / 100 Base - T Magnetic RJ45 Jack Pcb Mounting Stacked 8P8C Right Angle

10 / 100 Base - T Magnetic RJ45 Jack Pcb Mounting Stacked 8P8C Right Angle
10 / 100 Base - T Magnetic RJ45 Jack Pcb Mounting Stacked 8P8C Right Angle

Large Image :  10 / 100 Base - T Magnetic RJ45 Jack Pcb Mounting Stacked 8P8C Right Angle

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 74990111211

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: Pcb Mounting Stacked 8P8C Right Angle 10/100Base-T Rj45 Magnetic Modular Jack Type: RJ45
Humidity: 33% Temperature:: +25°C
Operating Temperature: -40°C - + 85°C Hipot Test: 1500Vrms 1min
High Light:

rj45 surface mount jack

,

ethernet rj45 jack

74990111211 pcb mounting stacked 8P8C right angle 10/100Base-T rj45 magnetic modular jack


Description:

10/100Base-TX RJ45 single port (1x1) 90 degree with LEDs Integrated magnetics connector (ICM),

designed to support applications, Such as Network Interface Cards (NIC), LAN-on Motherboard

(LOM), and PC applications.



* Single port (1X1) 90 degree RJ45 with internal magnetics.

* RoHS-6 peak wave solder temperature rating 260 0C.

* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.

* Internal magnetics are 100% electrically tested for HI-POT and functionality.



* Meets or exceeds IEEE 802.3 standard for 100Base-T.

* 350 uH minimum OCL with 8 mA bias current.

* High performance for maximum EMI suppression.

* Minimum 1500 Vrms isolation per IEEE 802.3 requirement.

* Operating temperature range: 0 0C to +70 0C.

* Storage temperature range: -40 0C to +85 0C.
