Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,CE,UL
Model Number: 83421C
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
83421C Power Inductors For Power Applications With Restricted PCB Space And Height, |
Inductance: |
0.42μH To 100μH |
Feature: |
Low RDC |
Application: |
Power Applications |
Size: |
7.8*5.2*1.8mm |
Type: |
SMD |
Product Name: |
83421C Power Inductors For Power Applications With Restricted PCB Space And Height, |
Inductance: |
0.42μH To 100μH |
Feature: |
Low RDC |
Application: |
Power Applications |
Size: |
7.8*5.2*1.8mm |
Type: |
SMD |

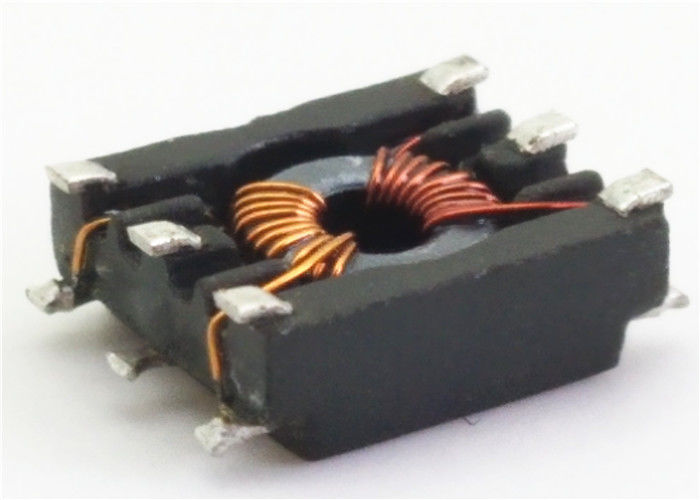

83421C power inductors for power applications with restricted PCB space and height
Description:
| Inductance | DC Current | Saturation Current | DC Resistance | |
| ±20% | Max. | Typ. | Max. | |
| Part no | μH | A | A | mΩ |
| 83421C | 0.42 | 3.00 | 5.69 | 24 |
| 83751C | 0.75 | 2.70 | 4.55 | 30 |
| 83122C | 1.2 | 1.70 | 3.36 | 65 |
| 83172C | 1.7 | 1.55 | 2.71 | 73 |
| 83232C | 2.3 | 1.40 | 2.35 | 86 |
| 83332C | 3.3 | 1.35 | 1.79 | 98 |
| 83472C | 4.7 | 1.10 | 1.66 | 130 |
| 83682C | 6.8 | 0.95 | 1.30 | 150 |
| 83852C | 8.5 | 0.85 | 1.15 | 167 |
| 83103C | 10 | 0.75 | 1.04 | 185 |
| 83153C | 15 | 0.60 | 0.85 | 300 |
| 83223C | 22 | 0.50 | 0.74 | 350 |
| 83333C | 33 | 0.42 | 0.59 | 600 |
| 83473C | 47 | 0.35 | 0.48 | 710 |
| 83683C | 68 | 0.30 | 0.41 | 850 |
| 83823C | 82 | 0.27 | 0.37 | 1250 |
| 83104C | 100 | 0.24 | 0.34 | 1320 |
Dimensions:
