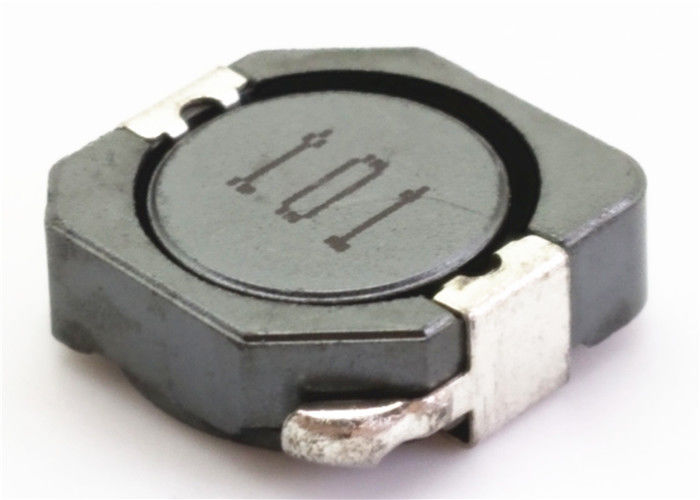

Bobbin - Wound SMD Shielded Power Inductor Surface Mounting For Computers

Product Details

Place of Origin: Guangdong,shenzhen

Brand Name: Shareway

Certification: RoHS,CE,UL

Model Number: 29102C

Payment & Shipping Terms

Minimum Order Quantity: 500/1000

Price: Supportive

Packaging Details: Reel/Tray

Delivery Time: Stock Or 3 weeks

Payment Terms: TT,Paypal,West Union

Supply Ability: 1kk-pcs/month

Get Best Price
Highlight:

wire wound chip inductors

,

high current power inductors

Product Name:
29102C Low Profile Bobbin-wound Shielded Inductors For Computers
Usage:
High Temperature Inductor
Application:
Powerline Filtering
Type:
Bobbin-wound
Pin Finish:
Tin
Operation Temperature Range:
-40 Degreeto +125 Degree
Product Name:
29102C Low Profile Bobbin-wound Shielded Inductors For Computers
Usage:
High Temperature Inductor
Application:
Powerline Filtering
Type:
Bobbin-wound
Pin Finish:
Tin
Operation Temperature Range:
-40 Degreeto +125 Degree
Bobbin - Wound SMD Shielded Power Inductor Surface Mounting For Computers

29102C Low profile bobbin-wound shielded inductors for computers


Description:

  • FEATURES
  • RoHS compliant
  • Low profile
  • Surface mount
  • Inductance range from 1.0μH to 1.0mH
  • Tape & reel
  • UL 94V-0 materials
  • J-STD-020D.1 reflow



  Inductance (10kHz, 0.1VAC) Inductance (10kHz, 0.1VAC) Idc2 Rdc
  Nom. Min. – Max. Max. Max.
Part No. μH μH A
29102C 1.0 0.70 – 1.30 6.0 16
29152C 1.5 1.05 – 1.95 5.5 18
29222C 2.2 1.54 – 2.86 5.0 20
29332C 3.3 2.31 – 4.29 4.0 28
29472C 4.7 3.29 – 6.11 2.3 30
29682C 6.8 4.76 – 8.84 2.1 40
29103C 10 8.0 – 12.0 1.8 45
29153C 15 12.0 – 18.0 1.5 65
29223C 22 17.6 – 26.4 1.2 85
29333C 33 26.4 – 39.6 1.0 120
29473C 47 37.6 – 56.4 850mA 170
29683C 68 54.4 – 81.6 650mA 250
29104C 100 80.0 – 120 530mA 360
29154C 150 120 – 180 530mA 500
29224C 220 176 – 264 380mA 760
29334C 330 264 – 396 320mA 1000
29474C 470 376 – 564 260mA 1600
29684C 680 544 – 816 210mA 2400
29105C 1000 800 – 1200 180mA 4100





ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range -40°C to 85°C
Storage temperature range -40°C to 125°C





SOLDERING INFORMATION
Peak reflow solder temperature 250˚C
Pin finish Tin
Moisture sensitivity level 1





Dimensions:

Bobbin - Wound SMD Shielded Power Inductor Surface Mounting For Computers 0
