Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,CE,UL
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
EP Series SMPS Flyback Transformer For Switching Power Supply |
Type: |
EP Transformer |
Application: |
Switching Power Supply |
Phase: |
Single |
Coil Structure: |
Horizontal |
Usage: |
High Frequency |
Product Name: |
EP Series SMPS Flyback Transformer For Switching Power Supply |
Type: |
EP Transformer |
Application: |
Switching Power Supply |
Phase: |
Single |
Coil Structure: |
Horizontal |
Usage: |
High Frequency |

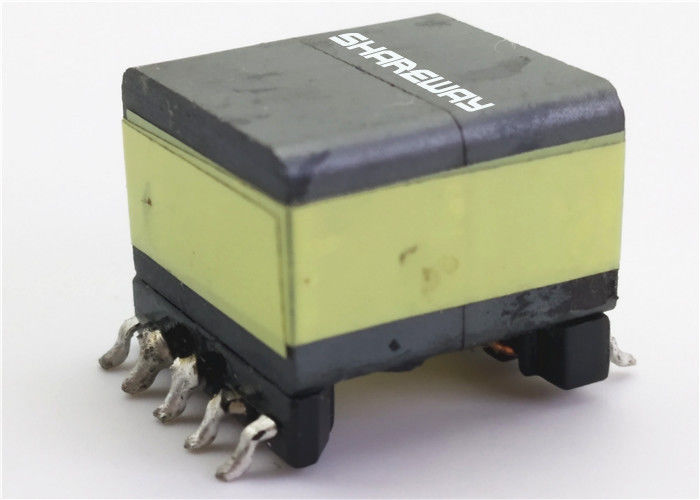

EP series SMPS Flyback Transformer for Switching Power Supply
Description:
1.High quality and Competitive price
2.Excellent after-sale service
3.High-temperature resistant
5.High efficiency of over 95%
6. Working frequency range 20kHZ-500kHZ
7.High isolation strength
8. Lower profile and weight
9. high power density
10. Operating temperature -40℃to+125℃
11.Custom designs available
12.Supply samples free with short delivery time
| Model | Bobbin orientation | frequency | Output Power | Dimension | |||||
| A | B | C | D | E | Pins | ||||
| EE13 | Horizontal | 20kHz~100kHz | 2W~5W | 14.0 | 10.2 | 12.0 | 13.5 | 2.5 | 4*4 |
| ER14 | Horizontal | 20kHz~100kHz | 3W~10W | 15.0 | 14.0 | 6.5 | 12.0 | 2.5 | 5*5 |
| EE16 | Vertical | 20kHz~100kHz | 3W~15W | 17.5 | 12.2 | 18.0 | 16.0 | 3.5*2.7 | 4*6 |
| EE19 | Horizontal | 20kHz~100kHz | 5W~20W | 20.0 | 12.5 | 13.0 | 18.0 | 3.0 | 5*5 |
| EL19-V | Vertical | 20kHz~100kHz | 5W~30W | 20.0 | 12.0 | 32.0 | 17.0 | 3.5*2.7 | 4*6 |
| EI22 | Vertical | 20kHz~100kHz | 5W~60W | 23.0 | 12.7 | 20.0 | 17.0 | 3.8 | 5*5 |
| EFD25 | Horizontal | 20kHz~100kHz | 8W~60W | 26.0 | 22.5 | 14.0 | 27.0 | 5.0 | 5*5 |
| EI28 | Vertical | 20kHz~100kHz | 30W~60W | 30.0 | 17.5 | 23.0 | 22.5 | 5.0 | 5*5 |
| EI35 | Vertical | 20kHz~100kHz | 30W~150W | 36.0 | 22.5 | 33.0 | 29.0 | 5.0 | 6*6 |
| EER35 | Vertical | 20kHz~100kHz | 100W~300W | 37.0 | 25.0 | 46.0 | 30.5 | 5.0 | 8*8 |
| EE42 | Horizontal | 20kHz~100kHz | 100W~500W | 46.0 | 36.2 | 35.5 | 44.5 | 5.0 | 8*8 |
| EER42 | Vertical | 20kHz~100kHz | 100W~500W | 43.5 | 27.5 | 49.5 | 46.5 | 5.0 | 9*9 |
| EER49 | Vertical | 20kHz~100kHz | 100W~800W | 49.5 | 27.5 | 58.0 | 37.0 | 5.0 | 11*11 |
| EE55 | Vertical | 20kHz~100kHz | 100W~1000W | 44.0 | 40.0 | 41.0 | 56.0 | 5.0 | 11*11 |
| R10 | Vertical | 20kHz~100kHz | 30W~100W | 30.0 | 28.0 | 19.0 | 29.5 | 7.2 | 6*6 |
| PQ32 | Vertical | 20kHz~100kHz | 50W~300W | 33.0 | 30.3 | 34.0 | 35.0 | 5.0 | 6*6 |
