Product Name: |
MABAES0034 RF 4:1 Auto Transformer For Wireless Applications |
Application: |
Wireless Applications |
TR: |
4:1 |
Feature: |
RF Transformer |
Material: |
Core |
Sample: |
Free |
Product Name: |
MABAES0034 RF 4:1 Auto Transformer For Wireless Applications |
Application: |
Wireless Applications |
TR: |
4:1 |
Feature: |
RF Transformer |
Material: |
Core |
Sample: |
Free |

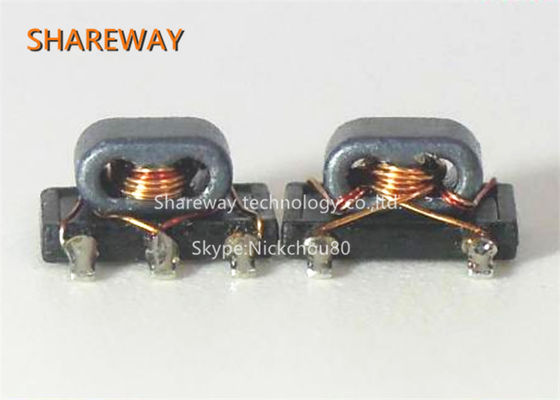

MABAES0034 RF 4:1 Auto Transformer for wireless applications
Features
• Surface Mount
• 4:1 Impedance Ratio
Description:
MABAES0034 is a 4:1 RF transformer in a low cost, surface mount package. Ideally suited for high volume
cellular and wireless applications
Functional Configuration:
| Function | Pin No. |
|
Primary dot Primary Primary CT Secondary dot Secondary Secondary CT Case Ground Not Connected |
1 5 - 4 5 - - 2,3 |
Absolute Maximum Ratings
| Parameter | Absolute Maximum |
|
RF Power DC Current Storage Temperature |
250 mW 30 mA -55°C to +100°C |
