Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: MDR75SG100MC
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
MDR75SG100MC Fixed Inductor Henry Inductor Power Inductor Bifilar Coil |
Inductor: |
Henry Inductor |
Application: |
Laptops |
Feature: |
Low Profile |
Inductance: |
15uH ~ 1000uH |
Current Range: |
0.3A To 2.8A |
Product Name: |
MDR75SG100MC Fixed Inductor Henry Inductor Power Inductor Bifilar Coil |
Inductor: |
Henry Inductor |
Application: |
Laptops |
Feature: |
Low Profile |
Inductance: |
15uH ~ 1000uH |
Current Range: |
0.3A To 2.8A |

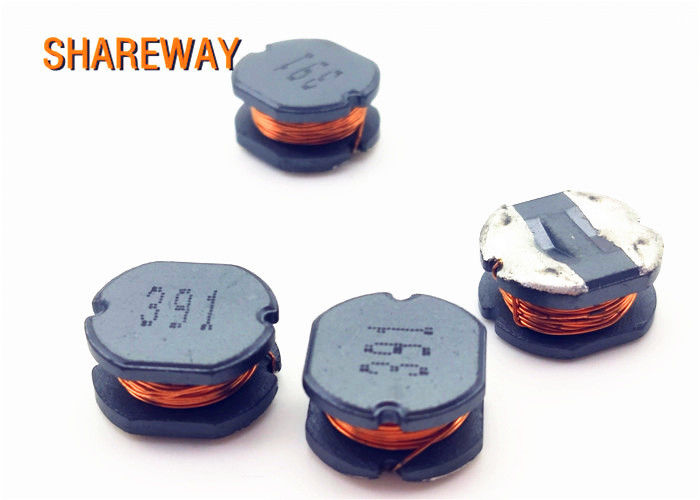

MDR75SG100MC fixed Inductor Henry Inductor Power Inductor bifilar Coil
Features:
. High saturation current
. Good resistance to heat and humidity
. High Q value
. Good for high density mounting
. Characteristics:
. Inductance range: 10 ~ 560uH
. Operating temperature: -20 to 100 degrees Celsius
. Customized to customer specifications
Part number |
Inductance (uH) |
Tolerance (±%) |
DCR MAX (Ω) |
Isat (A) |
Irms (A) |
MDR75SG100MC | 10 | 20 | 0.07 | 2.8 | 2.3 |
MDR75SG150MC | 15 | 20 | 0.09 | 2.4 | 1.8 |
MDR75SG220MC | 22 | 20 | 0.11 | 2.0 | 1.5 |
MDR75SG330MC | 33 | 20 | 0.13 | 1.6 | 1.2 |
MDR75SG470MC | 47 | 20 | 0.18 | 1.35 | 1.1 |
MDR75SG680MC | 68 | 20 | 0.28 | 1.1 | 0.85 |
MDR75SG101MC | 100 | 20 | 0.43 | 0.9 | 0.72 |
MDR75SG151MC | 150 | 20 | 0.64 | 0.75 | 0.58 |
MDR75SG221MC | 220 | 20 | 0.96 | 0.62 | 0.49 |
MDR75SG331MC | 330 | 20 | 1.26 | 0.51 | 0.4 |
MDR75SG470MC | 470 | 20 | 1.5 | 0.43 | 0.34 |
MDR75SG680MC | 680 | 20 | 2 | 0.36 | 0.28 |
MDR75SG102MC | 1000 | 20 | 2.8 | 0.3 | 0.2 |
