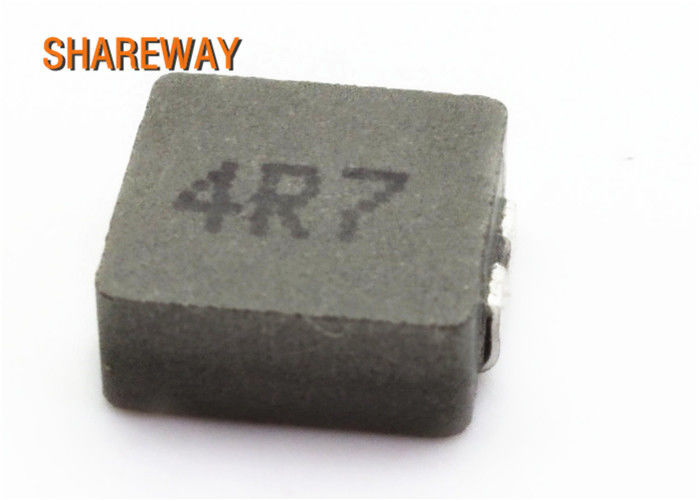

Surface Mount SMD Power Inductor MHA252010NSGR22M / MHA252010NSG2R2M For Server

Product Details

Place of Origin: Guangdong,shenzhen

Brand Name: Shareway

Certification: RoHS,ISO9001-2001

Model Number: MHA252010NSGR22M / MHA252010NSG2R2M

Payment & Shipping Terms

Minimum Order Quantity: 500/1000

Price: Supportive

Packaging Details: Reel/Tray

Delivery Time: Stock Or 3 weeks

Payment Terms: TT,Paypal,West Union

Supply Ability: 1kk-pcs/month

Get Best Price
Highlight:

wire wound chip inductors

,

high current power inductors

Product Name:
Surface Mount Inductor MHA252010NSGR22M / MHA252010NSG2R2M For Server Applications
Application:
Server Applications
Inductor:
Surface Mount Inductor
DCR:
9.4~94mΩ
Inductance:
0.22~2.2uH
Isat:
2.35~6.3A
Product Name:
Surface Mount Inductor MHA252010NSGR22M / MHA252010NSG2R2M For Server Applications
Application:
Server Applications
Inductor:
Surface Mount Inductor
DCR:
9.4~94mΩ
Inductance:
0.22~2.2uH
Isat:
2.35~6.3A
Surface Mount SMD Power Inductor MHA252010NSGR22M / MHA252010NSG2R2M For Server

Surface mount inductor MHA252010NSGR22M / MHA252010NSG2R2M for Server Applications


Absolute Maximun Ratings:

  • Operating temperature rang:  -55℃ to +125℃
  • Storage temperature rang: -55℃ to +125℃



Soldering Information:

  • Peak reflow temperature :  250℃
  • Pin finish :  tin



Part number Inductance (uH±20%) DCR(mΩ)@25℃ TYP DCR(mΩ)@25℃ Max Irms(A) Isat(A)
MHA252010NSGR22M 0.22 9.4 11.5 5.3 6.3
MHA252010NSGR24M 0.24 12 15 4.6 5.5
MHA252010NSGR47M 0.47 26 32 3.55 4.15
MHA252010NSG1R0M 1.0 45 55 3.0 3.35
MHA252010NSG1R5M 1.5 72 86 2.25 2.75
MHA252010NSG2R2M 2.2 94 112 1.7 2.35





Dimensions:
