Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: MHA252012NSGR22M
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
MHA252012NSGR22M High Current SMD Chokes For Battery Powered Devices |
Chokes: |
SMD Chokes |
Feature: |
High Current |
Application: |
Battery Powered Devices |
OEM: |
With OEM |
Type: |
Wirewound |
Product Name: |
MHA252012NSGR22M High Current SMD Chokes For Battery Powered Devices |
Chokes: |
SMD Chokes |
Feature: |
High Current |
Application: |
Battery Powered Devices |
OEM: |
With OEM |
Type: |
Wirewound |

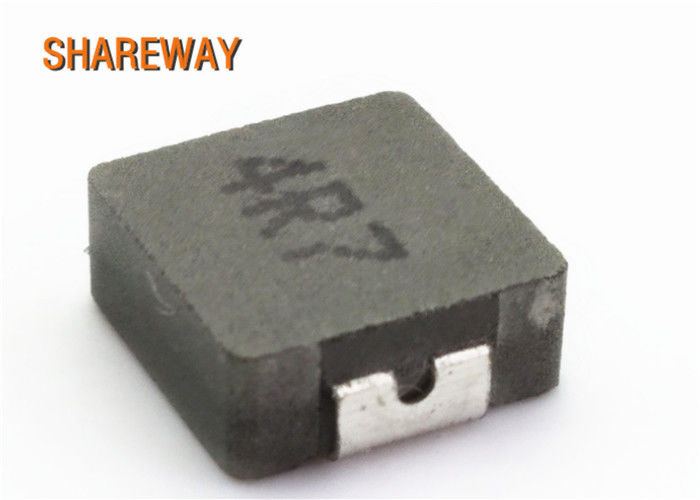

MHA252012NSGR22M High current SMD Chokes for Battery powered devices
Features:
| Part number | Inductance (uH±20%) | DCR(mΩ)@25℃ TYP | DCR(mΩ)@25℃ Max | Irms(A) | Isat(A) |
| MHA252012NSGR22M | 0.22 | 8.4 | 10.5 | 6.6 | 6.5 |
| MHA252012NSGR24M | 0.24 | 11 | 13 | 5.7 | 6.0 |
| MHA252012NSGR33M | 0.33 | 14 | 17 | 5.0 | 5.5 |
| MHA252012NSGR47M | 0.47 | 21 | 26 | 4.0 | 4.55 |
| MHA252012NSGR68M | 0.68 | 28 | 34 | 3.42 | 3.7 |
| MHA252012NSG1R0M | 1.0 | 40 | 48 | 2.7 | 3.5 |
| MHA252012NSG1R5M | 1.5 | 57 | 69 | 2.43 | 2.8 |
| MHA252012NSG2R2M | 2.2 | 79 | 95 | 2.0 | 2.3 |
