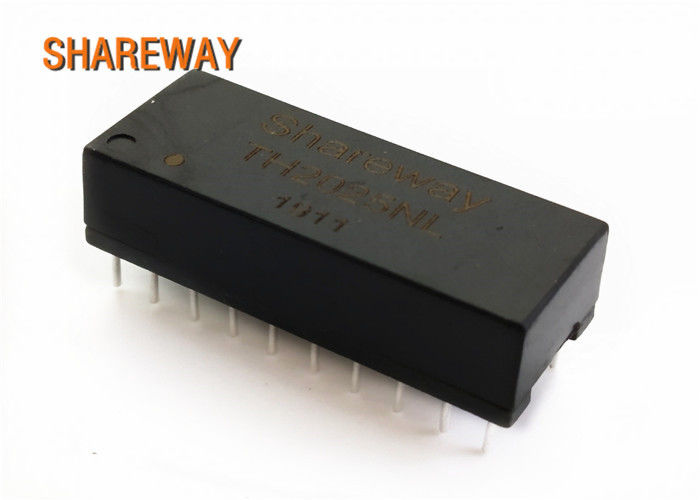

Lan Ethernet Magnetic Transformers H2001DG / H2005DG 350uH With 8mA DC Bias
Lan Ethernet Magnetic Transformers H2001DG / H2005DG 350uH With 8mA DC Bias

Lan Ethernet Magnetic Transformers H2001DG / H2005DG 350uH With 8mA DC Bias

Product Details

Place of Origin: Guangdong,shenzhen

Brand Name: Shareway

Certification: RoHS,ISO9001-2001

Model Number: H2001DG / H2005DG

Payment & Shipping Terms

Minimum Order Quantity: 500/1000

Price: Supportive

Packaging Details: Reel/Tray

Delivery Time: Stock Or 3 weeks

Payment Terms: TT,Paypal,West Union

Supply Ability: 1kk-pcs/month

Get Best Price

Product Details

Product Description
Highlight:

telecom isolation transformer

,

gigabit ethernet transformer

Part Number:
25.2x10x6.75mm Lan Transformer H2001DG / H2005DG 350uH With 8mA DC Bias
Inductance:
350uH
Pin:
20 Pins
Ports Of Core:
4
Material:
Base
Size:
25.2x10x6.75mm
Part Number:
25.2x10x6.75mm Lan Transformer H2001DG / H2005DG 350uH With 8mA DC Bias
Inductance:
350uH
Pin:
20 Pins
Ports Of Core:
4
Material:
Base
Size:
25.2x10x6.75mm
Lan Ethernet Magnetic Transformers H2001DG / H2005DG 350uH With 8mA DC Bias

25.2x10x6.75mm Lan Transformer H2001DG / H2005DG 350uH With 8mA DC Bias

Electrical Specifications @25°C:

  • OCL(uH) 100KHz,0.1Vrms With 8mA DC Bias: 350uH
  • Turns Ratio  (±5%):  1CT:1CT
  • Insertion Loss (dB Max) 0.5-100MHz: -1.1
  • Return Loss (dB Min) 0.5-30MHz:  -18
  • Return Loss (dB Min) 30.1-60MHz:  -18+20*log(f/30)
  • Return Loss (dB Min) 60.1-80MHz: -12
  • Cross talk (dB Min) 0.5-40MHz:  -35
  • Cross talk  (dB Min) 40.1-100MHz:  -33+20*log(f/50)
  • CMRR (dB Min) 0.5-100MHz : -30
  • HI-POT (Vrms) :1500



Size:

Lan Ethernet Magnetic Transformers H2001DG / H2005DG 350uH With 8mA DC Bias 0





SCHEMATICS:

Lan Ethernet Magnetic Transformers H2001DG / H2005DG 350uH With 8mA DC Bias 1

Tags:

1000base t transformer,

telecom isolation transformer,

gigabit ethernet transformer
