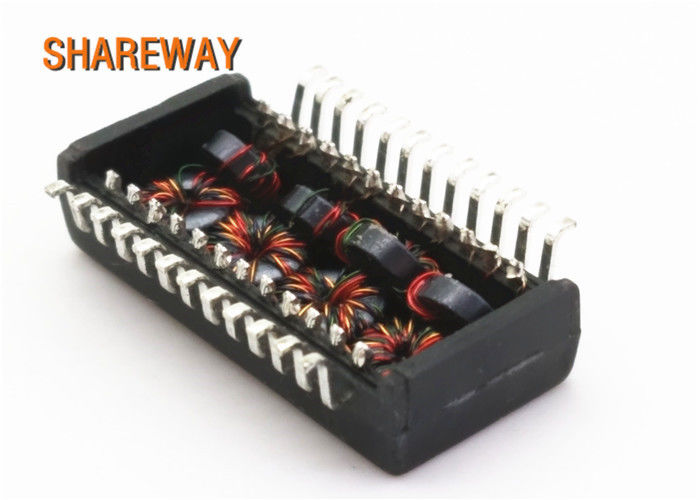

PC Card Magnetic Lan Transformer , PA66 Data Interface Transformer H4001CG

Product Details

Place of Origin: Guangdong,shenzhen

Brand Name: Shareway

Certification: RoHS,ISO9001-2001

Model Number: H4001CG

Payment & Shipping Terms

Minimum Order Quantity: 500/1000

Price: Supportive

Packaging Details: Reel/Tray

Delivery Time: Stock Or 3 weeks

Payment Terms: TT,Paypal,West Union

Supply Ability: 1kk-pcs/month

Get Best Price
Highlight:

small electric transformer

,

surface mount transformer

Product Name:
H4001CG PC Card Magnetic Lan Transformer / Data Interface Transformer
Type:
Data Interface Transformer
Material:
PA66
Transformer Type:
LAN 10/100/1000 Base-T
Inductance:
350uH
Samples:
Free
Product Name:
H4001CG PC Card Magnetic Lan Transformer / Data Interface Transformer
Type:
Data Interface Transformer
Material:
PA66
Transformer Type:
LAN 10/100/1000 Base-T
Inductance:
350uH
Samples:
Free
PC Card Magnetic Lan Transformer , PA66 Data Interface Transformer H4001CG

H4001CG PC Card Magnetic Lan Transformer / Data Interface Transformer


Description:

Products are mainly used in: high-performance digital switches; SDH / ATM transmission equipment; ISDN, ADSL, VDSL, POE power equipment integrated services digital equipment; FILT fiber loop equipment; Ethernet switches, etc., such as Yutai Electronics YL18-2050S , YL18-3002S and so on are more common!
The data pump is a device that is available on a consumer PCI network card. The data pump is also called a network transformer or can be called a network isolation transformer.
It plays two main roles on a network card. One is to transmit data. It uses the differential mode coupling of the differential signal sent by the PHY.
The coil is coupled to filter to enhance the signal and is coupled to the other end of the connected network cable of different levels by the conversion of the electromagnetic field;
It is a different level between different network devices connected to the isolated network cable to prevent different voltages from being transmitted through the network cable to damage the device. In addition to this
In addition, data mercury can also provide some lightning protection for the device.





Dimensions:

PC Card Magnetic Lan Transformer , PA66 Data Interface Transformer H4001CG 0





SCHEMATICS:

PC Card Magnetic Lan Transformer , PA66 Data Interface Transformer H4001CG 1
