Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: LPE6855ER104NU
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
100mH~150mH Small Signal Transformer For Welding Machine LPE6855ER104NU |
Inducance: |
100mH~150mH |
Transformer: |
Small Signal Transformer |
Application: |
Welding Machine |
Operating Temperature: |
-40℃to+125℃ |
Core Material: |
MnZn Power Ferrite Magnet |
Product Name: |
100mH~150mH Small Signal Transformer For Welding Machine LPE6855ER104NU |
Inducance: |
100mH~150mH |
Transformer: |
Small Signal Transformer |
Application: |
Welding Machine |
Operating Temperature: |
-40℃to+125℃ |
Core Material: |
MnZn Power Ferrite Magnet |

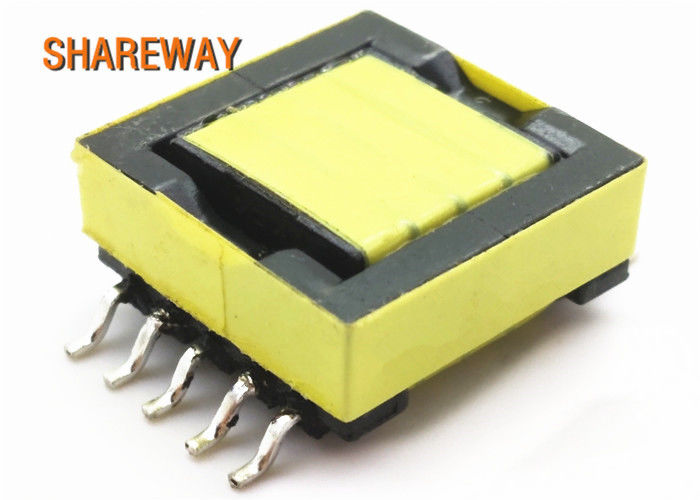

100mH~150mH Small Signal Transformer for welding machine LPE6855ER104NU
ENVIRONMENTAL PERFORMANCE:
| TEST | CONDITIONS |
| Thermal Cycling | Withstands - 55 °C to + 125 °C |
| Operating Temperature | - 55 °C to + 125 °C |
| High Humidity | 85 % |
| Soldering Heat | Tested to + 230 °C |
| Mechanical Shock | Per MIL-STD-202, method 213 (100G) |
| Vibration | Per MIL-STD-202, method 204 (20G) |
| Solderability | Per industry standards |
STANDARD ELECTRICAL SPECIFICATIONS:
| MODEL | IND. (μH) |
IND. TOL. |
DCR MAX. (Ω) |
MAX. RATED DC CURRENT (A) (1) |
SATURATING CURRENT (A) (2) |
| LPE6855ER104NU | 100 000 | ± 30 % | 37.7 | 0.07 | N/A |
| LPE6855ER154NU | 150 000 | ± 30 % | 46.2 | 0.06 | N/A |
Dimensions:
