Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: LPE6855ER102MG
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
Isolation CCFL Inverter Electrical Power Transformer LPE6855ER102MG |
Transformer: |
Electrical Power Transformer |
Type: |
CCFL Inverter |
Pin: |
8 |
Color: |
Black And Yellow |
Inductance: |
1000 To 4700 |
Product Name: |
Isolation CCFL Inverter Electrical Power Transformer LPE6855ER102MG |
Transformer: |
Electrical Power Transformer |
Type: |
CCFL Inverter |
Pin: |
8 |
Color: |
Black And Yellow |
Inductance: |
1000 To 4700 |
Isolation CCFL Inverter Electrical Power Transformer LPE6855ER102MG
Material:
•BOBBIN: Series circuit or parallel circuit.
•The best material: LCP E4008.
•Winding area is maximized.
•Optimized COVER structure design.
•Tape: Mylar tape, the main function is to bind the ferrite core. KAPTON tape, the main function is high voltage insulation and high temperature.
STANDARD ELECTRICAL SPECIFICATIONS:
| MODEL | IND. (μH) |
IND. TOL. |
DCR MAX. (Ω) |
MAX. RATED DC CURRENT (A) (1) |
SATURATING CURRENT (A) (2) |
| LPE6855ER102MG | 1000 | ± 20 % | 1.89 | 0.36 | 0.358 |
| LPE6855ER152MG | 1500 | ± 20 % | 2.90 | 0.29 | 0.292 |
| LPE6855ER222MG | 2200 | ± 20 % | 4.50 | 0.23 | 0.242 |
| LPE6855ER332MG | 3300 | ± 20 % | 5.50 | 0.21 | 0.197 |
| LPE6855ER472MG | 4700 | ± 20 % | 8.30 | 0.17 | 0.166 |

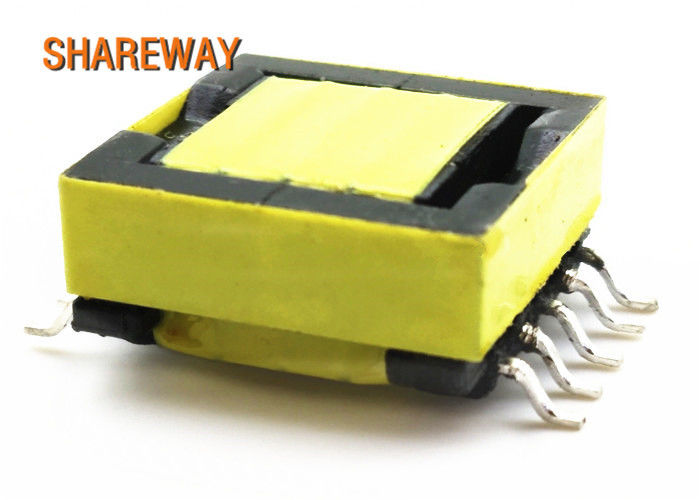

Picture:
