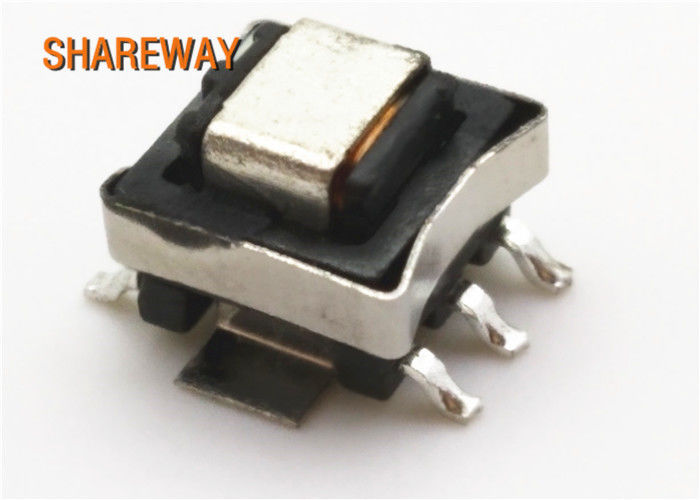

Name: Electromagnetic Shielding SMD Current Sensor Transformer LPE3325ER100MG For PCB Board
Brand: Shareway
SKU: LPE3325ER100MG
Rating: 4.9 (193 reviews)

Product Details

Place of Origin: Guangdong,shenzhen

Brand Name: Shareway

Certification: RoHS,ISO9001-2001

Model Number: LPE3325ER100MG

Payment & Shipping Terms

Minimum Order Quantity: 500/1000

Price: Supportive

Packaging Details: Reel/Tray

Delivery Time: Stock Or 3 weeks

Payment Terms: TT,Paypal,West Union

Supply Ability: 1kk-pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                small signal isolation transformer, small step down transformer


Product Name:	LPE3325ER100MG Electromagnetic Shielding SMD Current Sensor Transformer	Shield:	Shielding
Feature:	Electromagnetic	Transformer:	SMD Current Sensor Transformer
Application:	PCB Board	Type:	EE5 Series

Product Name:	LPE3325ER100MG Electromagnetic Shielding SMD Current Sensor Transformer
Shield:	Shielding
Feature:	Electromagnetic
Transformer:	SMD Current Sensor Transformer
Application:	PCB Board
Type:	EE5 Series

Electromagnetic Shielding SMD Current Sensor Transformer LPE3325ER100MG For PCB Board

LPE3325ER100MG Electromagnetic Shielding SMD Current Sensor Transformer

Description:

SMD high frequency current sensor transformer
Self electromagnetic shielding SMD current sensortransformer
SMD current sensor transformer useful wide variety of power conversion and line filter applications
Wound-on iron power material triodes SMD current sensor transformer
Hall-effect SMD current sensor transformer for different power supply
Close-loop hall effect SMD current sensor with low thermaldrift feature
SMD current sensor transformer series applicable in high frequency switching power supplies
Application inductance to vary with current load changes
High precision current sensor transformer for high frequency application
SMD low profile current senor transformer

MODEL	IND. TOL.	SCHEMATIC LETTER	DCR MAX. (Ω)	MAX. RATED DC CURRENT (A) (1)	SATURATING CURRENT (A) (2)
LPE3325ER100MG	10	± 20 %	0.22	0.54	1.480
LPE3325ER150MG	15	± 20 %	0.27	0.48	1.240
LPE3325ER220MG	22	± 20 %	0.42	0.39	1.050
LPE3325ER330MG	33	± 20 %	0.65	0.31	0.872
LPE3325ER470MG	47	± 20 %	0.97	0.26	0.740
LPE3325ER680MG	68	± 20 %	1.45	0.21	0.622
LPE3325ER101MG	100	± 20 %	2.22	0.17	0.518
LPE3325ER151MG	150	± 20 %	3.55	0.13	0.426
LPE3325ER221MG	220	± 20 %	4.31	0.12	0.354
LPE3325ER331MG	330	± 20 %	6.72	0.10	0.290
LPE3325ER471MG	470	± 20 %	9.83	0.08	0.244
LPE3325ER681MG	680	± 20 %	14.8	0.07	0.204
LPE3325ER102MG	1000	± 20 %	18.0	0.06	0.169

ENVIRONMENTAL PERFORMANCE:

TEST	CONDITIONS
Thermal Cycling	Withstands - 55 °C to + 125 °C
Operating Temperature	- 55 °C to + 125 °C
High Humidity	85 %
Soldering Heat	Tested to + 230 °C
Mechanical Shock	Per MIL-STD-202, method 213 (100G)
Vibration	Per MIL-STD-202, method 204 (20G)
Solderability	Per industry standards
