Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: LPE6562ER100MG
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
High Current Choke Cs Using Flat Copper Wire With Base Holder LPE6562ER100MG |
Construction: |
Magnetically Shield Construction |
Application: |
Communication Equipment |
Shape: |
Fig |
Feature: |
High Current Choke |
Material: |
Flat Copper Wire |
Product Name: |
High Current Choke Cs Using Flat Copper Wire With Base Holder LPE6562ER100MG |
Construction: |
Magnetically Shield Construction |
Application: |
Communication Equipment |
Shape: |
Fig |
Feature: |
High Current Choke |
Material: |
Flat Copper Wire |

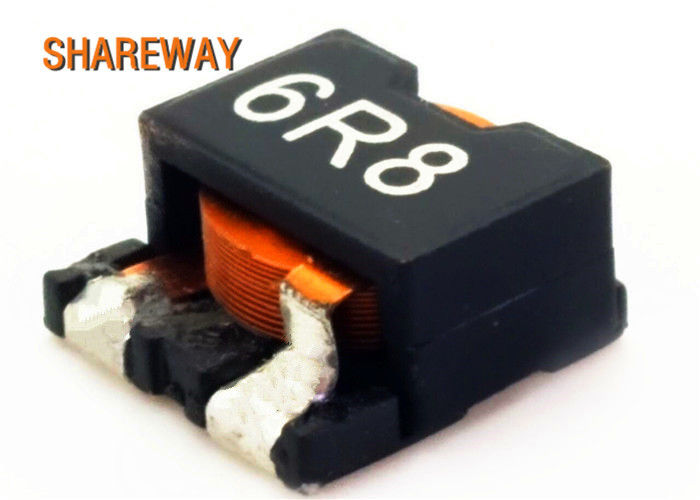

High Current Choke Cs Using Flat Copper Wire with Base Holder LPE6562ER100MG
Feature:
1. Magnetically shield construction, anti-electromagnetic interference, ultra low buzz noise, high density installation.
2. Low magnetic loss, low DC resistance, highest curent in this package size.
3. Three terminals, stabal soldering, anti-oxidation, easy to solder.
4. Fast paint stripping craft, PIN finished smoothly, no distortion, easy to solder.
| MODEL | IND. (μH) |
IND. TOL. |
DCR MAX. (Ω) |
MAX. RATED DC CURRENT (A) (1) |
SATURATING CURRENT (A) (2) |
| LPE6562ER100MG | 10 | ± 20 % | 0.03 | 3.09 | 5.055 |
| LPE6562ER150MG | 15 | ± 20 % | 0.04 | 2.79 | 4.160 |
| LPE6562ER220MG | 22 | ± 20 % | 0.05 | 2.26 | 3.460 |
| LPE6562ER330MG | 33 | ± 20 % | 0.08 | 1.81 | 2.840 |
| LPE6562ER470MG | 47 | ± 20 % | 0.12 | 1.48 | 2.390 |
| LPE6562ER680MG | 68 | ± 20 % | 0.19 | 1.20 | 1.990 |
| LPE6562ER101MG | 100 | ± 20 % | 0.29 | 0.98 | 1.650 |
| LPE6562ER151MG | 150 | ± 20 % | 0.45 | 0.78 | 1.350 |
| LPE6562ER221MG | 220 | ± 20 % | 0.54 | 0.71 | 1.115 |
| LPE6562ER331MG | 330 | ± 20 % | 0.84 | 0.57 | 0.912 |
| LPE6562ER471MG | 470 | ± 20 % | 1.24 | 0.47 | 0.765 |
| LPE6562ER681MG | 680 | ± 20 % | 1.89 | 0.38 | 0.637 |
| LPE6562ER102MG | 1000 | ± 20 % | 2.91 | 0.31 | 0.526 |
| LPE6562ER152MG | 1500 | ± 20 % | 4.50 | 0.25 | 0.430 |
| LPE6562ER222MG | 2200 | ± 20 % | 6.90 | 0.20 | 0.355 |
| LPE6562ER332MG | 3300 | ± 20 % | 10.4 | 0.16 | 0.290 |
| LPE6562ER472MG | 4700 | ± 20 % | 15.7 | 0.13 | 0.243 |
Dimensions:
