Product Name: |
LPE5047ER103NU SMD Power Inductor/Transformer For Impedance Analyzer |
Type: |
SMD Power Inductor/Transformer |
Inductance: |
10 To 68000uH |
Pin: |
5+5 |
Material: |
Core And Wire |
Mount: |
SMD/SMT |
Product Name: |
LPE5047ER103NU SMD Power Inductor/Transformer For Impedance Analyzer |
Type: |
SMD Power Inductor/Transformer |
Inductance: |
10 To 68000uH |
Pin: |
5+5 |
Material: |
Core And Wire |
Mount: |
SMD/SMT |

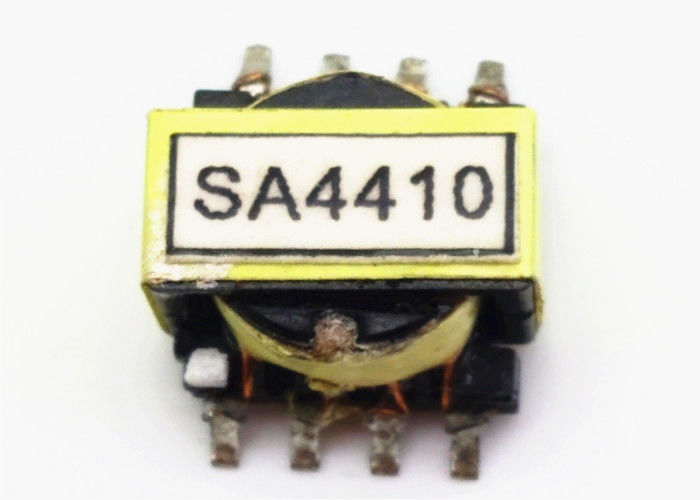

LPE5047ER103NU SMD Power Inductor/Transformer for impedance analyzer
Feature:
● Shielded inductor structure.
● The same size DC resistance is the lowest.
● It can ensure that the current resistance value decreases smoothly.
● Suitable for reflow soldering SMT process.
● The product is lead-free and RoHS compliant.
● Suitable for power supplies, personal computers and other handheld electronic devices
| MODEL | IND. (μH) |
ND. TOL. |
DCR MAX. (Ohms) |
MAX. RATED* DC CURRENT (Amps) |
SATURATING CURRENT** (Amps) |
| LPE5047ER103NU | 10 000 | ± 30 % | 3.27 | 0.19 | N/A |
| LPE5047ER153NU | 15 000 | ± 30 % | 6.26 | 0.14 | N/A |
| LPE5047ER223NU | 22 000 | ± 30 % | 7.58 | 0.13 | N/A |
| LPE5047ER333NU | 33 000 | ± 30 % | 9.50 | 0.11 | N/A |
| LPE5047ER473NU | 47 000 | ± 30 % | 18.5 | 0.08 | N/A |
| LPE5047ER683NU | 68 000 | ± 30 % | 24.1 | 0.07 | N/A |
| LPE5047ER100MG | 10 | ± 20 % | 0.03 | 2.29 | 2.690 |
| LPE5047ER150MG | 15 | ± 20 % | 0.04 | 2.07 | 2.230 |
| LPE5047ER220MG | 22 | ± 20 % | 0.05 | 1.68 | 1.860 |
| LPE5047ER330MG | 33 | ± 20 % | 0.09 | 1.35 | 1.540 |
| LPE5047ER470MG | 47 | ± 20 % | 0.13 | 1.11 | 1.300 |
| LPE5047ER680MG | 68 | ± 20 % | 0.15 | 1.01 | 1.085 |
ENVIRONMENTAL PERFORMANCE:
| TEST | CONDITIONS |
| Thermal Cycling | Withstands - 55 °C to + 125 °C |
| Operating Temperature | - 55 °C to + 125 °C* |
| High Humidity | 85 % |
| Soldering Heat | Tested to + 230 °C |
| Mechanical Shock | Per MIL-STD-202, Method 213 (100G) |
| Vibration | Per MIL-STD-202, Method 204 (20G) |
| Solderability | Per industry standards |
