Product Name: |
Isolation BMS Transformer / Choke For Texas Instruments |
Application: |
Texas Instruments |
Type: |
Isolation BMS Transformer / Choke |
Package: |
SMT/SMD |
Inductance: |
200uH Min |
Turns Ration: |
1.2:1 |
Product Name: |
Isolation BMS Transformer / Choke For Texas Instruments |
Application: |
Texas Instruments |
Type: |
Isolation BMS Transformer / Choke |
Package: |
SMT/SMD |
Inductance: |
200uH Min |
Turns Ration: |
1.2:1 |

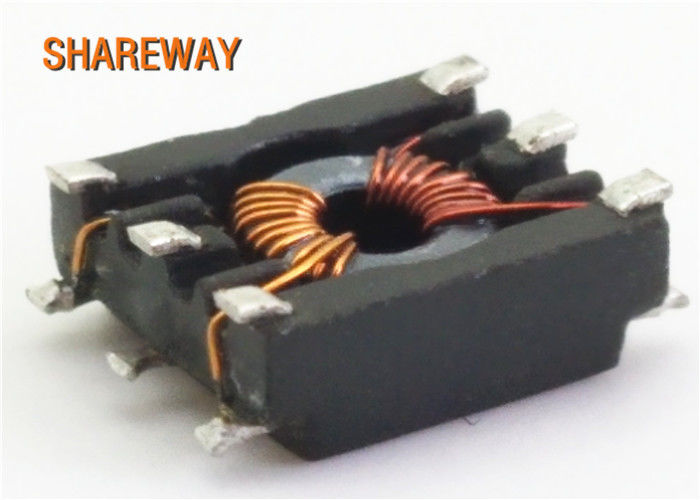

Isolation BMS Transformer / Choke for Texas Instruments
Description:
Size:14.75x8.3x4.2mm
Pin:3+3pins
Material: Copper wire and core
Color:Black
D.C. Resistance: 0.170 ohms
Inductance:350uH
Dielectric: 2500VAC
Turns Ratio: 1.2:1
ELECTRICAL SPECIFICATIONS @25℃ unless otherwise noted:
| PARAMETER | TEST CONDITIONS | VALUE |
| D.C. RESISTANCE 1-3 | @20℃ | 0.170 ohms ±20% |
| D.C. RESISTANCE 6-4 | @20℃ | 0.130 ohms ±20% |
| INDUCTANCE 1-3 | 10KHz,10mVAC,Ls | 200uH min |
| LEAKAGE INDUCTANCE 1-3 | tie(4+5+6),100KHz,100mVAC,Ls | 350nH typ.,700nH max |
| DIELECTRIC 1-6 | 3125VAC, 2 second | 2500VAC,1 minute |
| TURNS RATIO | (1-3):(6-4) | 1.2:1,±2% |
