Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: JXD2-0011NL
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Features: |
Board Guide |
Product Name: |
Board Guide JXD2-0011NL 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX |
Orientation: |
Vertical |
Termination: |
Solder |
Number Of Cores Per Jack: |
4 |
Shielding: |
Shielded |
Features: |
Board Guide |
Product Name: |
Board Guide JXD2-0011NL 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX |
Orientation: |
Vertical |
Termination: |
Solder |
Number Of Cores Per Jack: |
4 |
Shielding: |
Shielded |

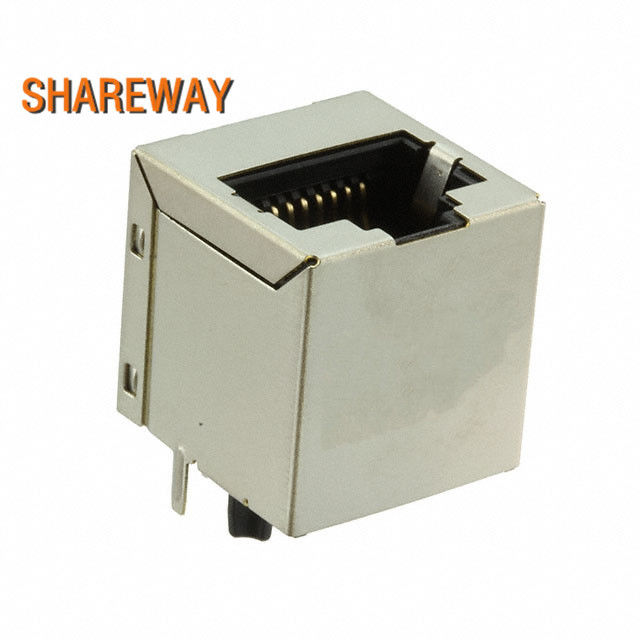

Board Guide JXD2-0011NL 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX
Description:
Feature:
Part Status: Active
Connector Type : RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-TX, AutoMDIX
Mounting Type: Through Hole
Orientation: Vertical
Termination: Solder
Height Above Board: 0.663" (16.85mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 4
Shielding: Shielded
Features: Board Guide
Tab: Direction User Selectable
Contact Material: Copper Alloy
Contact: Finish Gold
Operating Temperature: -40°C ~ 85°C
Contact Finish Thickness: 30.0µin (0.76µm)
Shield Material: Brass
