Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: SR08051R5MS
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
SR08051R5MS High Current Power Inductor For Infrared Devices |
Usage: |
Infrared Devices |
Lead Wire: |
Tinned Copper Wires |
Series: |
SMD Inductor |
Material: |
Wire |
Operating Temperature: |
-40°C ~ +105°C |
Product Name: |
SR08051R5MS High Current Power Inductor For Infrared Devices |
Usage: |
Infrared Devices |
Lead Wire: |
Tinned Copper Wires |
Series: |
SMD Inductor |
Material: |
Wire |
Operating Temperature: |
-40°C ~ +105°C |

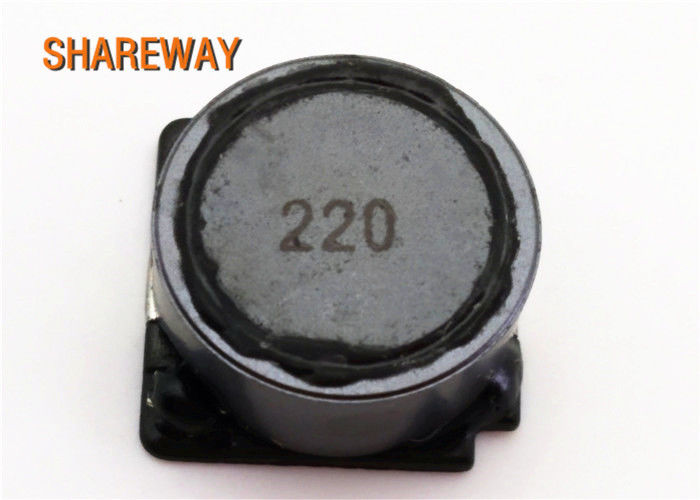

SR08051R5MS High current power inductor For Infrared Devices
| DWG No. | Inductance (uH) |
Q ref. |
Test Freq. ( Hz ) 100 K | SRF ( MHz ) nom. |
RDC ( Ω ) max |
IDC ( A) max |
| SR08051R5MS | 1.5±20% | 32 | 7.960M | 120.0 | 0.015 | 6.00 |
| SR08052R5MS | 2.5±20% | 32 | 7.960M | 70.0 | 0.020 | 5.00 |
| SR08053R3MS | 3.3±20% | 32 | 7.960M | 55.0 | 0.022 | 4.60 |
| SR08053R9MS | 3.9±20% | 32 | 7.960M | 45.0 | 0.024 | 4.40 |
| SR08054R7MS | 4.7±20% | 31 | 7.960M | 38.0 | 0.033 | 3.70 |
| SR08055R6MS | 5.0±20% | 31 | 7.960M | 34.0 | 0.035 | 3.50 |
| SR08056R8MS | 6.8±20% | 30 | 7.960M | 33.0 | 0.040 | 3.20 |
| SR08058R2MS | 8.2±20% | 29 | 7.960M | 30.0 | 0.050 | 2.80 |
| SR0805100MS | 10.0±20% | 25 | 2.520M | 22.0 | 0.070 | 2.30 |
| SR0805120MS | 12.0±20% | 25 | 2.520M | 20.0 | 0.080 | 2.00 |
| SR0805150MS | 15.0±20% | 25 | 2.520M | 16.0 | 0.090 | 1.80 |
| SR0805180MS | 18.0±20% | 20 | 2.520M | 15.0 | 0.100 | 1.60 |
| SR0805220MS | 22.0±20% | 20 | 2.520M | 13.0 | 0.110 | 1.50 |
| SR0805270MS | 27.0±20% | 20 | 2.520M | 12.0 | 0.120 | 1.30 |
| SR0805330KS | 33.0±10% | 15 | 2.520M | 10.0 | 0.140 | 1.20 |
| SR0805390KS | 39.0±10% | 15 | 2.520M | 9.5 | 0.160 | 1.10 |
| SR0805470KS | 47.0±10% | 15 | 2.520M | 9.0 | 0.200 | 1.00 |
| SR0805560KS | 56.0±10% | 15 | 2.520M | 8.5 | 0.240 | 0.94 |
| SR0805680KS | 68.0±10% | 15 | 2.520M | 8.0 | 0.300 | 0.85 |
| SR0805820KS | 82.0±10% | 12 | 2.520M | 7.0 | 0.370 | 0.78 |
| SR0805101KS | 100.0±10% | 12 | 0.796M | 6.5 | 0.450 | 0.72 |
| SR0805121KS | 120.0±10% | 12 | 0.796M | 5.6 | 0.480 | 0.66 |
| SR0805151KS | 150.0±10% | 12 | 0.796M | 5.5 | 0.680 | 0.58 |
| SR0805181KS | 180.0±10% | 12 | 0.796M | 5.0 | 0.770 | 0.51 |
| SR0805221KS | 220.0±10% | 12 | 0.796M | 4.8 | 0.960 | 0.49 |
| SR0805271KS | 270.0±10% | 12 | 0.796M | 4.5 | 1.110 | 0.42 |
| SR0805331KS | 330.0±10% | 12 | 0.796M | 4.3 | 1.260 | 0.34 |
| SR0805391KS | 390.0±10% | 12 | 0.796M | 4.0 | 1.770 | 0.36 |
| SR0805471KS | 470.0±10% | 12 | 0.796M | 3.8 | 1.960 | 0.34 |
| SR0805561KS | 560.0±10% | 30 | 0.796M | 3.7 | 2.500 | 0.30 |
| SR0805681KS | 680.0±10% | 29 | 0.796M | 3.5 | 2.800 | 0.28 |
| SR0805821KS | 820.0±10% | 28 | 0.796M | 3.2 | 4.000 | 0.23 |
| SR0805102KS | 1000.0±10% | 27 | 0.252M | 3.0 | 4.500 | 0.21 |
| SR0805122KS | 1200.0±10% | 28 | 0.252M | 2.6 | 6.800 | 0.17 |
| SR0805152KS | 1500.0±10% | 27 | 0.252M | 2.4 | 8.000 | 0.15 |
| SR0805182KS | 1800.0±10% | 30 | 0.252M | 1.6 | 9.200 | 0.14 |
| SR0805222KS | 2200.0±10% | 29 | 0.252M | 1.5 | 10.000 | 0.13 |
| SR0805272KS | 2700.0±10% | 31 | 0.252M | 1.4 | 11.800 | 0.12 |
| SR0805332KS | 3300.0±10% | 28 | 0.252M | 1.2 | 16.500 | 0.10 |
| SR0805392KS | 3900.0±10% | 28 | 0.252M | 1.1 | 18.000 | 0.09 |
| SR0805472KS | 4700.0±10% | 30 | 0.252M | 1.0 | 21.000 | 0.08 |
