Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: SR10061R5MS
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
SR10061R5MS Power Inductor For Portable Communication Equipment |
Inductance Range: |
1.5 To 4700 UH |
Dimension: |
9.5X9.5X5.5mm |
Usage: |
Remote Controller ETC |
Operating Temp.: |
-40°C ~ +105°C |
Current Range: |
0.1 To 6.4 A |
Product Name: |
SR10061R5MS Power Inductor For Portable Communication Equipment |
Inductance Range: |
1.5 To 4700 UH |
Dimension: |
9.5X9.5X5.5mm |
Usage: |
Remote Controller ETC |
Operating Temp.: |
-40°C ~ +105°C |
Current Range: |
0.1 To 6.4 A |

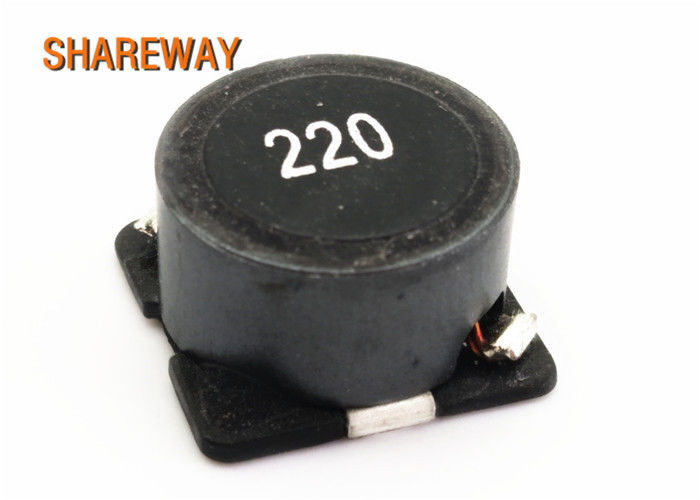

SR10061R5MS Power Inductor For Portable Communication Equipment
| DWG No. | Inductance (uH) |
Q ref. |
Test Freq. ( Hz ) 100 K | SRF ( MHz ) nom. |
RDC ( Ω ) max |
IDC ( A) max |
| SR10061R5MS | 1.5±20% | 35 | 7.960M | 105.0 | 0.018 | 6.40 |
| SR10062R2MS | 2.2±20% | 35 | 7.960M | 68.0 | 0.021 | 5.40 |
| SR10063R3MS | 3.3±20% | 34 | 7.960M | 55.0 | 0.024 | 5.00 |
| SR10063R9MS | 3.9±20% | 34 | 7.960M | 48.0 | 0.027 | 4.60 |
| SR10064R7MS | 4.7±20% | 33 | 7.960M | 40.0 | 0.036 | 4.00 |
| SR10065R6MS | 5.6±20% | 33 | 7.960M | 35.0 | 0.040 | 3.80 |
| SR10066R8MS | 6.8±20% | 33 | 7.960M | 32.0 | 0.044 | 3.40 |
| SR10068R2MS | 8.2±20% | 31 | 7.960M | 24.0 | 0.048 | 3.00 |
| SR1006100MS | 10.0±20% | 30 | 2.520M | 21.0 | 0.060 | 2.60 |
| SR1006120MS | 12.0±20% | 30 | 2.520M | 20.0 | 0.070 | 2.45 |
| SR1006150MS | 15.0±20% | 30 | 2.520M | 16.0 | 0.080 | 2.25 |
| SR1006180MS | 18.0±20% | 30 | 2.520M | 15.0 | 0.090 | 2.15 |
| SR1006220MS | 22.0±20% | 25 | 2.520M | 13.0 | 0.100 | 1.95 |
| SR1006270MS | 27.0±20% | 25 | 2.520M | 11.0 | 0.110 | 1.75 |
| SR1006330KS | 33.0±10% | 25 | 2.520M | 10.0 | 0.120 | 1.50 |
| SR1006390KS | 39.0±10% | 20 | 2.520M | 9.0 | 0.140 | 1.35 |
| SR1006470KS | 47.0±10% | 20 | 2.520M | 8.0 | 0.170 | 1.25 |
| SR1006560KS | 56.0±10% | 20 | 2.520M | 7.5 | 0.190 | 1.15 |
| SR1006680KS | 68.0±10% | 15 | 2.520M | 7.0 | 0.220 | 1.10 |
| SR1006820KS | 82.0±10% | 15 | 2.520M | 6.0 | 0.250 | 1.00 |
| SR1006101KS | 100.0±10% | 15 | 796K | 5.2 | 0.350 | 0.97 |
| SR1006121KS | 120.0±10% | 15 | 796K | 5.0 | 0.400 | 0.89 |
| SR1006151KS | 150.0±10% | 15 | 796K | 4.5 | 0.470 | 0.78 |
| SR1006181KS | 180.0±10% | 12 | 796K | 4.0 | 0.630 | 0.72 |
| SR1006221KS | 220.0±10% | 12 | 796K | 3.8 | 0.730 | 0.66 |
| SR1006271KS | 270.0±10% | 12 | 796K | 3.5 | 0.970 | 0.57 |
| SR1006331KS | 330.0±10% | 12 | 796K | 3.2 | 1.150 | 0.52 |
| SR1006391KS | 390.0±10% | 12 | 796K | 3.0 | 1.300 | 0.48 |
| SR1006471KS | 470.0±10% | 12 | 796K | 2.5 | 1.480 | 0.42 |
| SR1006561KS | 560.0±10% | 12 | 796K | 2.3 | 1.900 | 0.33 |
| SR1006681KS | 680.0±10% | 12 | 796K | 2.1 | 2.250 | 0.28 |
| SR1006821KS | 820.0±10% | 10 | 796K | 2.0 | 2.550 | 0.24 |
| SR1006102KS | 1000.0±10% | 29 | 252K | 1.9 | 3.100 | 0.23 |
| SR1006122KS | 1200.0±10% | 32 | 252K | 1.8 | 4.200 | 0.21 |
| SR1006152KS | 1500.0±10% | 31 | 252K | 1.7 | 5.000 | 0.19 |
| SR1006182KS | 1800.0±10% | 31 | 252K | 1.6 | 6.800 | 0.17 |
| SR1006222KS | 2200.0±10% | 31 | 252K | 1.5 | 7.600 | 0.16 |
| SR1006272KS | 2700.0±10% | 32 | 252K | 1.4 | 11.600 | 0.14 |
| SR1006332KS | 3300.0±10% | 32 | 252K | 1.3 | 13.500 | 0.12 |
| SR1006392KS | 3900.0±10% | 31 | 252K | 1.2 | 14.800 | 0.11 |
| SR1006472KS | 4700.0±10% | 32 | 252K | 0.8 | 18.000 | 0.10 |
