Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: SR1011100MS
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
RoHS Compliant Power Supplies Fixed Inductor SR1011100MS 10uH To 1000uH |
Type: |
SMD LAN Transformer |
Inductance Range: |
10uH To 1000uH |
Current: |
0.8 To 8A |
Material: |
LCP |
Usage: |
Data Recorder |
Product Name: |
RoHS Compliant Power Supplies Fixed Inductor SR1011100MS 10uH To 1000uH |
Type: |
SMD LAN Transformer |
Inductance Range: |
10uH To 1000uH |
Current: |
0.8 To 8A |
Material: |
LCP |
Usage: |
Data Recorder |

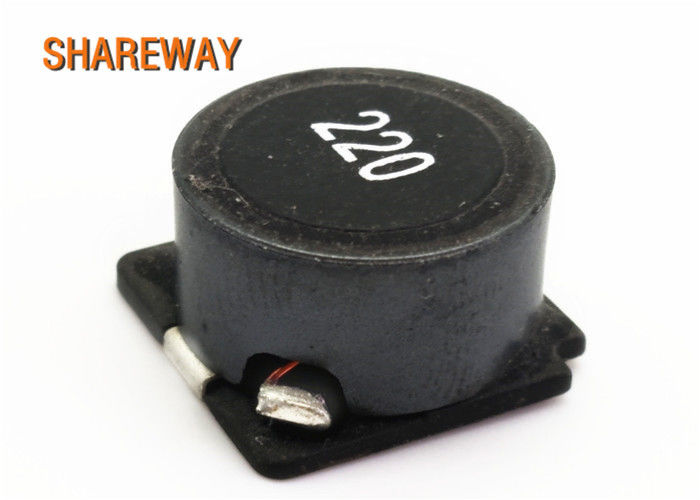

RoHS Compliant Power Supplies Fixed Inductor SR1011100MS 10uH to 1000uH
| DWG No. | Inductance (uH) |
SRF ( MHz ) typ. |
RDC ( Ω ) max. |
Irms 1 △T=20°C, typ. |
Irms 2 △T=40°C max. |
Isat max. |
| SR1011100MS | 10±20% | 18.0 | 0.035 | 3.50 | 5.00 | 8.00 |
| SR1011150MS | 15±20% | 13.0 | 0.045 | 3.00 | 4.00 | 7.00 |
| SR1011220MS | 22±20% | 12.0 | 0.065 | 2.50 | 3.20 | 5.50 |
| SR1011330MS | 33±20% | 9.5 | 0.080 | 2.00 | 2.60 | 4.00 |
| SR1011470MS | 47±20% | 7.0 | 0.110 | 1.70 | 2.20 | 3.80 |
| SR1011680MS | 68±20% | 5.8 | 0.150 | 1.50 | 2.00 | 3.00 |
| SR1011101KS | 100±10% | 4.8 | 0.200 | 1.30 | 1.80 | 2.50 |
| SR1011151KS | 150±10% | 3.8 | 0.320 | 1.00 | 1.50 | 2.00 |
| SR1011221KS | 220±10% | 3.1 | 0.420 | 0.90 | 1.20 | 1.70 |
| SR1011331KS | 330±10% | 2.5 | 0.700 | 0.70 | 0.90 | 1.30 |
| SR1011471KS | 470±10% | 2.1 | 0.900 | 0.50 | 0.75 | 1.10 |
| SR1011681KS | 680±10% | 1.7 | 1.250 | 0.40 | 0.60 | 1.00 |
| SR1011102KS | 1000±10% | 1.4 | 1.900 | 0.30 | 0.50 | 0.80 |
