Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: EFD-069SG
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
EFD-069SG Power Surface Mount Transformer 22.3*17.3*9.0cm With RoHS |
Usage: |
PCB |
Type: |
Surface Mount Transformer |
Mount: |
Surface Mount |
Dimension: |
22.3*17.3*9.0cm |
RoHS: |
With |
Product Name: |
EFD-069SG Power Surface Mount Transformer 22.3*17.3*9.0cm With RoHS |
Usage: |
PCB |
Type: |
Surface Mount Transformer |
Mount: |
Surface Mount |
Dimension: |
22.3*17.3*9.0cm |
RoHS: |
With |

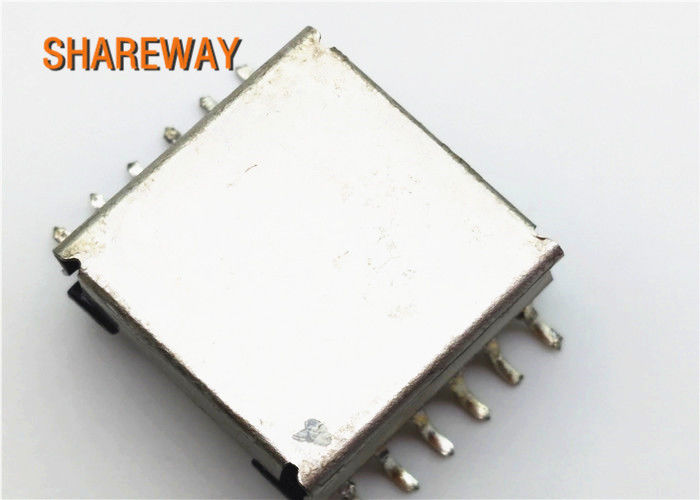

EFD-069SG Power Surface Mount Transformer 22.3*17.3*9.0cm with RoHS
Description:
| Part Number | EFD-304SG |
| Power (W) | 25.0 |
| Vinput (DC) | 33-57V |
| Output | 12V,2.1A |
| Aux/Bias | 12V,30mA |
| Drive | / |
| Application freq (KHz) | 250 |
| Pri Inductance (uH)±10% | 37 |
| Leakage Inductance (uH MAX) | 0.75 |
| Hi-pot (Vrms) Pri-Sec | 1500 |
| Length | 22.3 |
| Width | 17.0 |
| Height | 9.0 |
Dimension:
