Name: Open Header Ethernet Lan Transformer G5002CG 350uH Inductance In Networking Solutions
Brand: Shareway
SKU: G5002CG
Rating: 4.5 (114 reviews)

Product Details

Place of Origin: Guangdong,shenzhen

Brand Name: Shareway

Certification: RoHS,ISO9001-2001

Model Number: G5002CG

Payment & Shipping Terms

Minimum Order Quantity: 500/1000

Price: Supportive

Packaging Details: Reel/Tray

Delivery Time: Stock Or 3 weeks

Payment Terms: TT,Paypal,West Union

Supply Ability: 1kk-pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                small electric transformer, smd power transformer


Product Name:	G5002CG Open Header Ethernet Lan Transformer In Networking SolutionsG5002CG Open Header Ethernet Lan Transformer In Networking Solutions	Speed:	10/100 Base-T
Operating Temperature Range:	0℃ To +70℃.	Inductance:	350uH
Pins:	50 Pins	Size:	27.75x10.7x8.65mm

Product Name:	G5002CG Open Header Ethernet Lan Transformer In Networking SolutionsG5002CG Open Header Ethernet Lan Transformer In Networking Solutions
Speed:	10/100 Base-T
Operating Temperature Range:	0℃ To +70℃.
Inductance:	350uH
Pins:	50 Pins
Size:	27.75x10.7x8.65mm

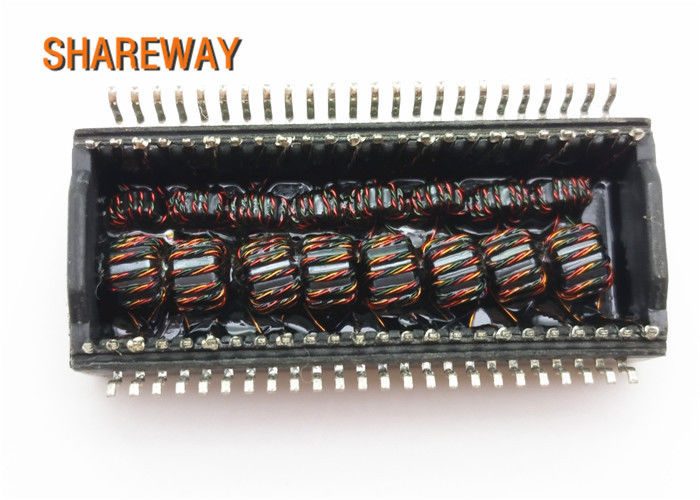

Open Header Ethernet Lan Transformer G5002CG 350uH Inductance In Networking Solutions

G5002CG Open Header Ethernet Lan Transformer In Networking Solutions

Description:

Meets IEEE 802.3 & ANSI X 3.263 Standards.
10/100 Base-T,Surface Mount Type,Open Header .
Operating temperature range: 0℃ to +70℃.
RoHS Compliant.

Effect:

The signal can be enhanced to make it travel farther;
The chip end is isolated from the outside, the anti-interference ability is greatly enhanced, and the chip is greatly protected (such as lightning strike);
When receiving network ports of different levels (if the PHY chip is 2.5V and some PHY chips are 3.3V), it will not affect each other's devices.

Dimension:

Tags:
