Product Name: |
Surface Mount Power Inductor MHA0415NSGR22M For Battery Powered Devices |
Application: |
Battery Powered Devices |
Type: |
Surface Mount |
Inductor: |
Power Inductor |
Material: |
Ferrite Core |
Inductance Range: |
0.33uH To 4.7uH |
Product Name: |
Surface Mount Power Inductor MHA0415NSGR22M For Battery Powered Devices |
Application: |
Battery Powered Devices |
Type: |
Surface Mount |
Inductor: |
Power Inductor |
Material: |
Ferrite Core |
Inductance Range: |
0.33uH To 4.7uH |

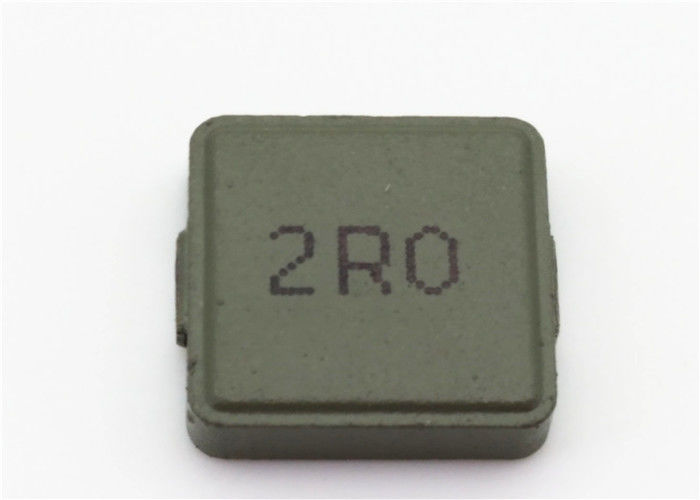

Surface Mount Power Inductor MHA0415NSGR22M For Battery Powered Devices
Description:
| Part number |
Inductance (uH±20%) |
DCR(mΩ)@25℃ TYP. |
DCR(mΩ)@25℃ MAX. |
Irms (A) |
Isat (A) |
| MHA0415NSGR22M | 0.22 | 7.80 | 9.00 | 7.00 | 14.00 |
| MHA0415NSG1R5M | 1.50 | 49.00 | 63.00 | 4.00 | 6.00 |
Notes:
1. Electrical specification at 25℃.
2. Inductance tested at 100 kHz, 0.25Vrms.
3. Irms is the current that caused a approximate 40℃ temperature rise from 25℃ ambient.
4. Isat is the DC current at which inductance drop approximately 30% from its value without current.
5. The part temperature(ambient + temp.rise) should not exceed 125℃ under worst case operating conditions.Circuit design,component placement, PWB trace size and thickness,airflow and other cooling provisions all affect the part temperature.Part temperature should be verified in the end appliction.
Dimensions:
