Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: MHA0715NSGR33M
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
Magnetic Shield Construction Power Inductor For Desktop Application MHA0715NSGR33M |
Application: |
Desktop Application |
Inductance: |
0.33 To 10.0uH |
Shield: |
Shielded |
Weight: |
0.35g |
Size: |
6.9x6.5x1.3mm |
Product Name: |
Magnetic Shield Construction Power Inductor For Desktop Application MHA0715NSGR33M |
Application: |
Desktop Application |
Inductance: |
0.33 To 10.0uH |
Shield: |
Shielded |
Weight: |
0.35g |
Size: |
6.9x6.5x1.3mm |

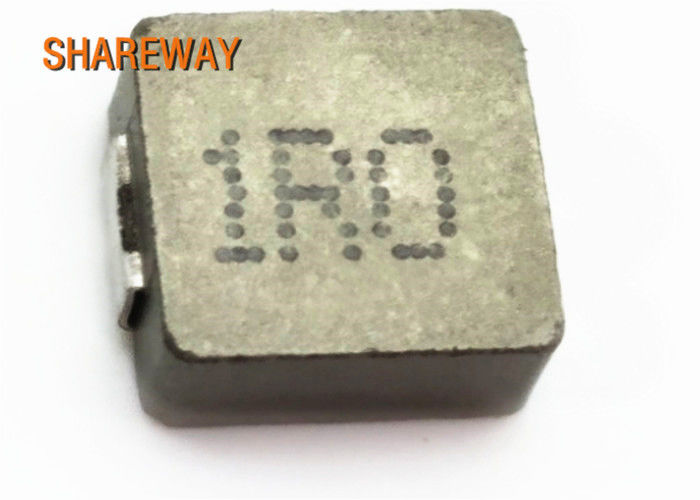

Magnetic Shield Construction Power Inductor For Desktop Application MHA0715NSGR33M
Description:
| Part number |
Inductance (uH±20%) |
DCR(mΩ)@25℃ TYP. |
DCR(mΩ)@25℃ MAX. |
Irms (A) |
Isat (A) |
| MHA0715NSGR33M | 0.33 | 6.80 | 7.80 | 10.00 | 19.50 |
| MHA0715NSGR47M | 0.47 | 7.30 | 8.50 | 9.80 | 16.00 |
| MHA0715NSGR56M | 0.56 | 9.50 | 11.00 | 9.00 | 14.00 |
| MHA0715NSGR68M | 0.68 | 10.50 | 12.00 | 8.50 | 12.00 |
| MHA0715NSGR82M | 0.82 | 15.00 | 17.00 | 7.00 | 10.00 |
| MHA0715NSG1R0M | 1.00 | 18.50 | 21.00 | 5.50 | 9.00 |
| MHA0715NSG1R2M | 1.20 | 25.00 | 30.00 | 5.40 | 8.50 |
| MHA0715NSG2R2M | 2.20 | 46.00 | 54.00 | 3.50 | 6.00 |
| MHA0715NSG3R3M | 3.30 | 54.00 | 63.00 | 3.30 | 5.50 |
| MHA0715NSG4R7M | 4.70 | 76.00 | 85.00 | 3.20 | 5.00 |
| MHA0715NSG6R8M | 6.80 | 125.0 | 135.0 | 2.50 | 4.00 |
| MHA0715NSG100M | 10.0 | 165.0 | 175.0 | 2.00 | 3.00 |
Dimensions:
