Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: NRH2410TR68NN4
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
NRH2410TR68NN4 Reflow SMD Power Inductor For Power Application |
Usage: |
Power Application |
Type: |
High-frequency Ferrite |
Soldering: |
Reflow |
Case Size (mm): |
2.4x2.4 |
Rated Current (max): |
1.57 A |
Product Name: |
NRH2410TR68NN4 Reflow SMD Power Inductor For Power Application |
Usage: |
Power Application |
Type: |
High-frequency Ferrite |
Soldering: |
Reflow |
Case Size (mm): |
2.4x2.4 |
Rated Current (max): |
1.57 A |

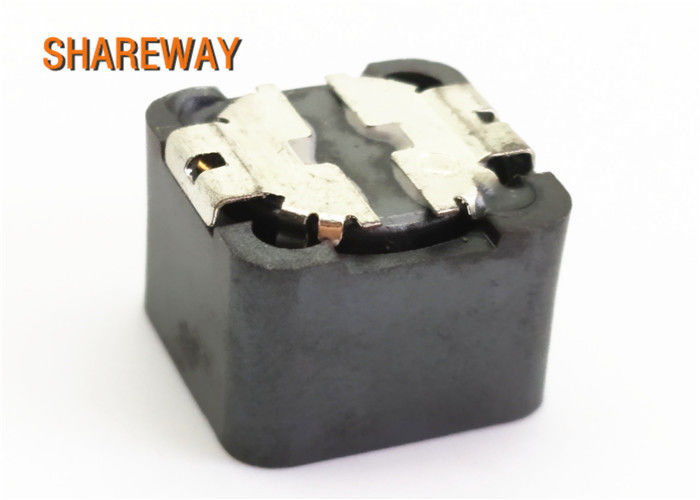

NRH2410TR68NN4 Reflow SMD Power Inductor For Power Application
Description:
| Part number | NRH2410TR68NN4 |
| Brand | Shareway |
| Inductance | 0.68 uH ± 30 % |
| Case Size (mm) | 2.4x2.4 |
| Rated Current (max) | 1.57 A |
| Saturation Current (max) | 2.2 A (⊿L=30%) |
| Saturation Current (typ) | 2.3 A (⊿L=30%) |
| Temperature Rise Current (max) | 1.57 A (⊿T=40℃) |
| Temperature Rise Current (typ) | 1.81 A (⊿T=40℃) |
| DC Resistance (max) | 72 mΩ |
| DC Resistance (typ) | 60 mΩ |
| LQ Measuring Frequency | 100 kHz |
| Operating Temp. Range | -25 to +120 ℃ (Including-self-generated heat) |
|
Temperature characteristic (Inductance change) |
± 20 % |
| RoHS Compliance (10 subst.) | Yes |
| REACH Compliance (201 subst.) | Yes |
| Halogen Free | Yes |
| Soldering |
Reflow |
Dimensions:
