Product Name: |

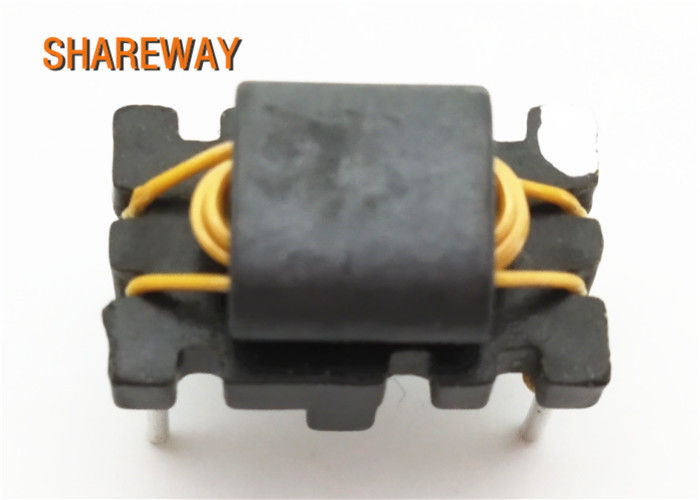

RFC-007SG Surface Mount Integrated Circuit RF/Balun Transformer |
Transformer: |
RF Transformer |
Mount: |
Surface Mount |
Pin Number: |
3+3 |
Frequency: |
5-1000 MHz |
System Impedance: |
75 |
Product Name: |
RFC-007SG Surface Mount Integrated Circuit RF/Balun Transformer |
Transformer: |
RF Transformer |
Mount: |
Surface Mount |
Pin Number: |
3+3 |
Frequency: |
5-1000 MHz |
System Impedance: |
75 |
RFC-007SG Surface Mount Integrated Circuit RF/Balun Transformer
Electrical Specifications @25°C Operating Temperature -40°C to+85°C
| Part Number |
System Impedance | Frequency (MHz) |
Coupling Nom |
Coupling Flatness |
| RFC-007SG | 75 | 5-1000 | 16+0.4/-0.6 | ±0.6 |
| RFC-008SG | 75 | 5-1000 | 12.0±0.8 | ±0.8 |
| RFC-009SG | 75 | 5-900 | 19.7±0.5 | ±0.6 |
| RFC-010SG | 75 | 5-1000 | 8.0±0.8 | ±1.1 |
| RFC-011SG | 75 | 5-1000 | 10.0±0.5 | ±0.5 |
| RFC-012SG | 75 | 10-1000 | 14.0Typ | ---- |
| RFC-013SG | 75 | 5-1000 | 7.0±0.8 | ±0.8 |
FEATURES:
Operating bandwidth of .08 MHz to 400 MHz
Peak IR reflow temperature rating of 235°C
Excellent insertion loss and return loss
Various impedance ratios available
Recognized By UL 60950-1
