Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: DCT15EFD-U44S003
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray/ Bulk
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 50k-pcs/month
Name: |
DCT15EFD-U44S003 SMD 5+5 For Linear Technology Chipset 3A 5A PoE Application |
Type: |
Surface Mount |
Material: |
Ferriter Core + Bobbin |
Current Ratiing: |
3A~5A |
Inductance: |
10uH |
Isolation Voltage: |
1KV |
Name: |
DCT15EFD-U44S003 SMD 5+5 For Linear Technology Chipset 3A 5A PoE Application |
Type: |
Surface Mount |
Material: |
Ferriter Core + Bobbin |
Current Ratiing: |
3A~5A |
Inductance: |
10uH |
Isolation Voltage: |
1KV |

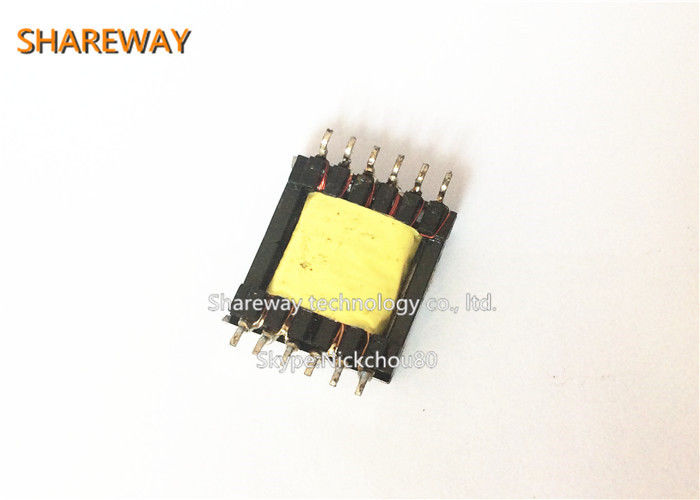

DCT15EFD-U44S003 is a transformer designed for Linear Technology Chipset, for 3A or 5A
Charging application.
Specification of DCT15EFD-U44S003 SMD 5+5:
| Trader Part Number | DCT15EFD-U44S003 |
| Part Number | SA15003NL |
| Inductance: 6,7-5,4 | 10uH± 10% |
| DCR : | |
| 6-5 | 120mohm Max |
| 7-4 | 140 mohm Max |
| 1-10 | 4.0 ohm Max |
| Turns Ratio: Sec.- Pri | 1:10 ± 5% |
| Witjhstanding Voltage: Pri.- Sec. | 1KVAC 2 Sec |
Dimension of DCT15EFD-U44S003 SMD 5+5:
Recommend PCB Layout of DCT15EFD-U44S003 SMD 5+5 :
Schematic of DCT15EFD-U44S003 SMD 5+5:
