Product Name: |
B82806D0060A240 Power Over Ethernet Transformer 60W For Switch Mode Power Supply |
Type: |
PoE Transformer |
Application: |
PoE, Active Clamp Forward Converter |
Suitable For: |
Switch-mode Power Supplies |
Terminations: |
Tin-silver Over Copper |
Characteristics 3: |
Surface Mount Technology |
Characteristics 4: |
Wide Range Of Filtering Spectrum |
Product Name: |
B82806D0060A240 Power Over Ethernet Transformer 60W For Switch Mode Power Supply |
Type: |
PoE Transformer |
Application: |
PoE, Active Clamp Forward Converter |
Suitable For: |
Switch-mode Power Supplies |
Terminations: |
Tin-silver Over Copper |
Characteristics 3: |
Surface Mount Technology |
Characteristics 4: |
Wide Range Of Filtering Spectrum |

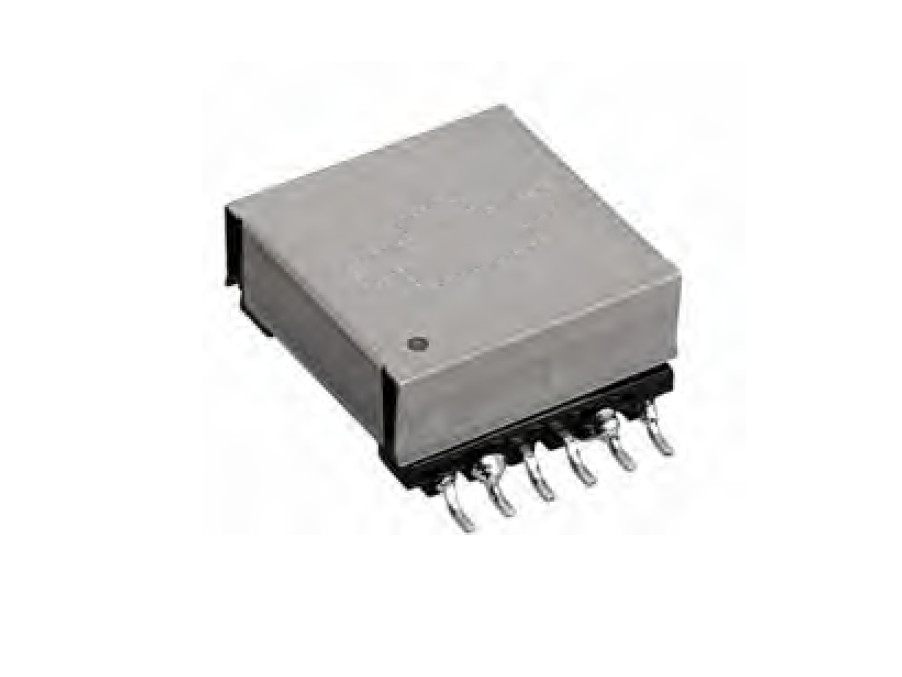

Construction of B82806D0060A240 Power over Ethernet Transformer 60W for switch mode power supply
EFD20 Ferrite Core
SMD Type for easily for machine assembly
Gullwing terminals
Features of B82806D0060A240 Power over Ethernet Transformer 60W for switch mode power supply:
Typical Applications for the B82806D0060A240 Power over Ethernet Transformer 60W for switch mode power supply:
Dimensions of the B82806D0060A240 Power over Ethernet Transformer 60W for switch mode power supply:
Circuit diagram of the B82806D0060A240 Power over Ethernet Transformer 60W for switch mode power supply:
Characteristics and part number
| Part Number | Trader Part Number | Inductance (1,2-3,4) | Turns Ratio | Secondary output voltage | Leak inductance | DCR Pri Max | DRC Aux Max | DRC Sec Max |
| uH | Pri : Sec: Aux | V | uH Max | mohm | mohm | mohm | ||
| EFD20-013 | B82806D0060A120 | 100 | 2:1:1 | 12 | 0.18 | 35 | 160 | 8 |
| EFD20-014 | B82806D0060A050 | 100 | 4:1:2.3 | 5 | 0.32 | 35 | 185 | 4.5 |
| EFD20-015 | B82806D0060A033 | 100 | 6:1:3.5 | 3.3 | 0.6 | 35 | 180 | 3.5 |
| EFD20-016 | B82806D0060A240 | 100 | 1:1:0.5 | 24 | 0.25 | 35 | 163 | 35 |
