Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 742792904
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
742792904 SMT EMI Suppression Power Inductor For Power Electronics |
Usage: |
For Power Electronics |
Product Type:: |
SMD Power Inductor |
Operating Temperature Range: |
–40 ºC To +125 ºC |
Termination Type: |
Surface Mount |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
742792904 SMT EMI Suppression Power Inductor For Power Electronics |
Usage: |
For Power Electronics |
Product Type:: |
SMD Power Inductor |
Operating Temperature Range: |
–40 ºC To +125 ºC |
Termination Type: |
Surface Mount |
Package: |
Cut Tape /MouseReel/ Reel |
742792904 SMT EMI Suppression Power Inductor for Power electronics
Characteristics
Applications
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Maximum Impedance | Zmax | 90 MHz | 7000 | Ω | typ |
| Rated Current | I R | ΔT = 40 K | 7 | A | max |
| DC Resistance | RDC | @ 20 °C | 0.015 | Ω | max |
| Operating Voltage | V | DC | 120 | V | max |
742792904 SMT EMI Suppression Power Inductor for Power electronics
Shape and Dimensions:

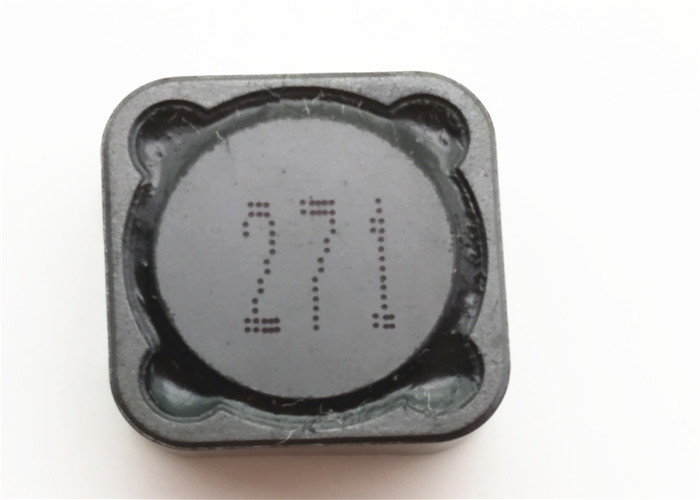

Product picture:
742792904 SMT EMI Suppression Power Inductor for Power electronics
